Yamaha Outboard Parts - Starter - 15DWH (1988) | Flood Marine

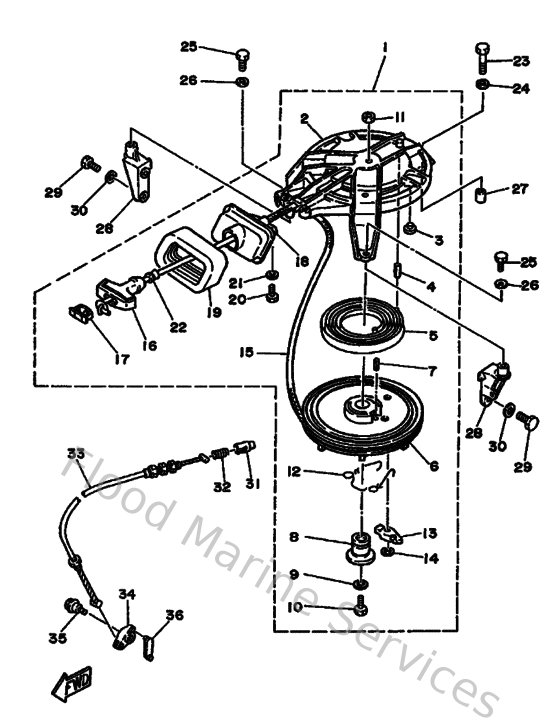

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6E7157100394
Starter assembly
Loading…

↗
2
682157117194
Case, Starter
Loading…

↗
3
648157730000
Stay 3
Loading…

↗
4
916904001600
Pin, spring (648)
Loading…

↗
5
9051008M0400
Spring, spiral (677)
Loading…

↗
6
677157140094
Drum, sheave
Loading…

↗
7
916904002000
Pin, spring
Loading…

↗
8
677157170100
Shaft
Loading…

↗
9
90201065F300
Washer, plate
Loading…

↗
10
973130602000
Bolt(7u8)
Loading…

↗
11
953030660000
Nut(661)
Loading…

↗
12
677157050200
Spring, pawl drive
Loading…

↗
13
677157410100
Pawl, drive
Loading…

↗
14
9343006M0200
Circlip (689)
Loading…

↗
16
689157550000
Handle, starter
Loading…

↗
17
6F5157790100
Cover
Loading…

↗
18
6E7157580094
Guide, Rope
Loading…

↗
19
6E7157610000
Seal, Rubber 1
Loading…

↗
20
973130601600
Bolt, hexagon deep recess
Loading…

↗
21
929900660000
Washer, plain (646)
Loading…

↗
22
689157890000
Damper
Loading…

↗
23
970140603500
Bolt(3rv)
Loading…

↗
27
995101011400
Pin, dowel(3vd)
Loading…

↗
28
6E7157710194
Stay 1
Loading…

↗
31
656157480000
Plunger, starter stop
Loading…

↗
32
905011022700
Spring, comprreshion(656)
Loading…

↗
33
682157700000
Cable Comp., Starter Stop
Loading…

↗
34
682157460000
Arm
Loading…

↗
35
9010906M0400
Bolt
Loading…

↗
36
682157470000
Link
Loading…

↗
