Yamaha Outboard Parts - Starter - 25NEMO (1994) | Flood Marine

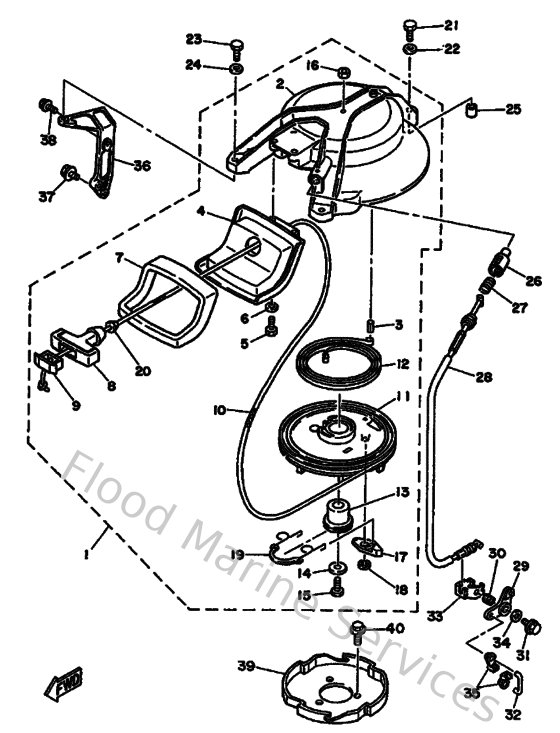

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6L2157100100
Starter assembly
Loading…

↗
2
6L2157110094
Case, starter
Loading…

↗
3
916904001400
Pin, spring (6f2)
Loading…

↗
4
6L2157580094
Guide, rope
Loading…

↗
5
970950601600
Bolt, hexagon deep recess
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
6L2157620000
Seal, rubber 2
Loading…

↗
8
689157550100
Handle, starter
Loading…

↗
9
6F5157790200
Cover
Loading…

↗
11
6J8157140000
Drum, sheave
Loading…

↗
12
9051008M0400
Spring, spiral (677)
Loading…

↗
13
677157170100
Shaft
Loading…

↗
14
90201065F300
Washer, plate
Loading…

↗
15
970950602500
Bolt
Loading…

↗
16
953800670000
Nut
Loading…

↗
17
676157410300
Pawl, drive
Loading…

↗
18
9343006M0200
Circlip (689)
Loading…

↗
19
6J8157050000
Spring, drive pawl
Loading…

↗
20
6A0157890000
Damper
Loading…

↗
21
970800603500
Bolt(j52)
Loading…

↗
25
995101011400
Pin, dowel(3vd)
Loading…

↗
26
656157480000
Plunger, starter stop
Loading…

↗
27
905011022700
Spring, comprreshion(656)
Loading…

↗
28
6L2157700000
Cable comp., starter stop
Loading…

↗
29
6L2157460000
Arm
Loading…

↗
30
9038706M5100
Collar (6g0)
Loading…

↗
31
970800602000
Bolt(7u8)
Loading…

↗
32
6L2157470000
Link
Loading…

↗
33
6L2157740000
Stay 4
Loading…

↗
34
9020106M6200
Washer, plate (6e5)
Loading…

↗
35
661412620200
Joint, choke lever
Loading…

↗
36
6L2157720094
Stay 2
Loading…

↗
38
970950602000
Bolt(7u8)
Loading…

↗
39
6L2157230100
Pulley, starter
Loading…

↗
40
9010508M1000
Bolt (6a0)
Loading…

↗
