25NMHO (1996)
Starter

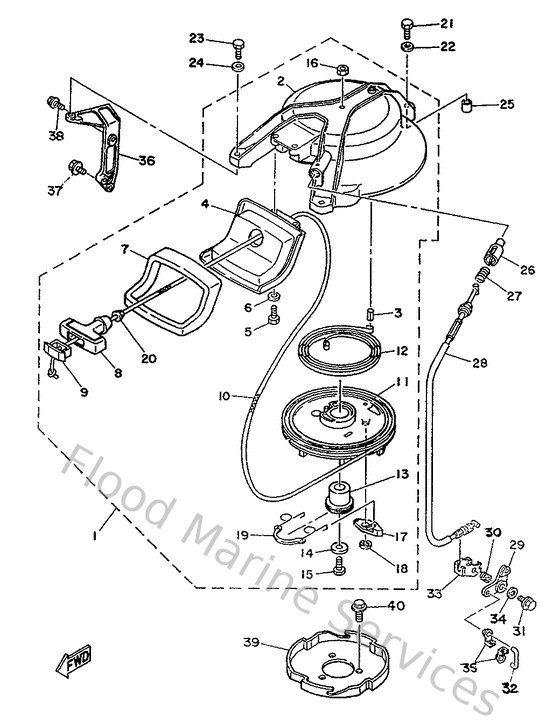

Diagram: Starter
Parts List
Reference
Description
Price
1
6L2157100100
Starter assembly
Loading…
↗
2
6L2157110094
Case, starter
Loading…
↗
4
6L2157580094
Guide, rope
Loading…
↗
7
6L2157620000
Seal, rubber 2
Loading…
↗
8
689157550100
Handle, starter
Loading…
↗
9
6F5157790200
Cover
Loading…
↗
11
6J8157140000
Drum, sheave
Loading…
↗
13
677157170100
Shaft
Loading…
↗
17
676157410300
Pawl, drive
Loading…
↗
19
6J8157050000
Spring, drive pawl
Loading…
↗
20
6A0157890000
Damper
Loading…
↗
26
656157480000
Plunger, starter stop
Loading…
↗
28
6L2157700000
Cable comp., starter stop
Loading…
↗
29
6L2157460000
Arm
Loading…
↗
32
6L2157470000
Link
Loading…
↗
33
6L2157740000
Stay 4
Loading…
↗
35
661412620200
Joint, choke lever
Loading…
↗
36
6L2157720094
Stay 2
Loading…
↗
39
6L2157230100
Pulley, starter
Loading…
↗
