Yamaha Outboard Parts - Starter - 25QEO (1991) | Flood Marine

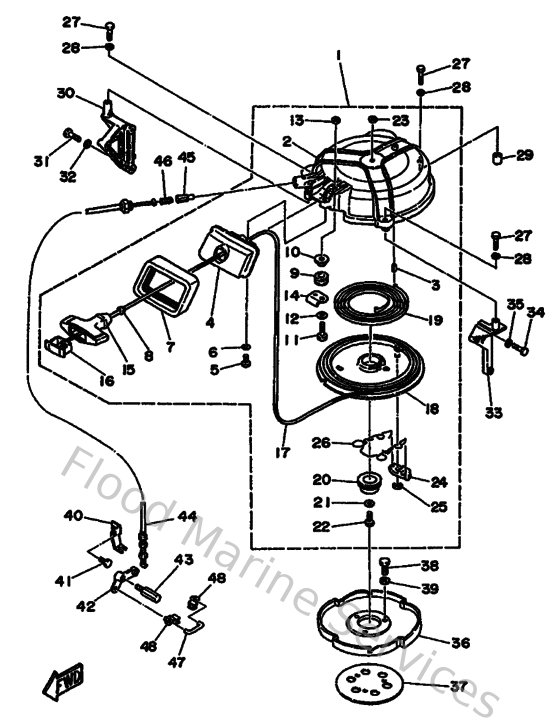

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6H4157100294
Starter Assembly
Loading…

↗
2
6H4157110294
Case, starter
Loading…

↗
3
916904001800
Pin spring(664)
Loading…

↗
4
6H4157580094
Guide, Rope
Loading…

↗
5
970950601600
Bolt, hexagon deep recess
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
6H4157620000
Seal, rubber 2
Loading…

↗
9
6F5157520000
Roller, wire
Loading…

↗
10
9038706M6900
Collar (688)
Loading…

↗
11
973130603000
Bolt
Loading…

↗
13
953800660000
Nut(661)
Loading…

↗
14
6H4157870100
Stay
Loading…

↗
15
689157550100
Handle, starter
Loading…

↗
16
6F5157790200
Cover
Loading…

↗
18
6H4157140000
Drum, sheave
Loading…

↗
19
905100800200
Spring spiral 656157130000
Loading…

↗
20
6H4157170100
Shaft, starter
Loading…

↗
21
902010606000
Washer, plate
Loading…

↗
22
973130602000
Bolt(7u8)
Loading…

↗
25
9343006M0200
Circlip (689)
Loading…

↗
26
6H4157050000
Spring drive pawl assembly
Loading…

↗
27
970140603500
Bolt(3rv)
Loading…

↗
29
995301001400
Pin, dowel
Loading…

↗
30
6H4157710194
Stay 1
Loading…

↗
31
970130803000
Bolt
Loading…

↗
32
929900860000
Washer, plain (663)
Loading…

↗
33
6H4157720294
Stay 2
Loading…

↗
34
973130602500
Bolt
Loading…

↗
36
6H4157230194
Pulley, starter
Loading…

↗
37
6J8813650000
Gasket, hole cover
Loading…

↗
38
973130802000
Bolt(6td)
Loading…

↗
41
970800601200
Bolt(gh1)
Loading…

↗
43
9010906M0400
Bolt
Loading…

↗
44
6H4157701000
Cable Comp., Starter Stop
Loading…

↗
45
656157480000
Plunger, starter stop
Loading…

↗
46
905011022700
Spring, comprreshion(656)
Loading…

↗
48
661412620200
Joint, choke lever
Loading…

↗
