Yamaha Outboard Parts - Starter - 30DMHO (1989) | Flood Marine

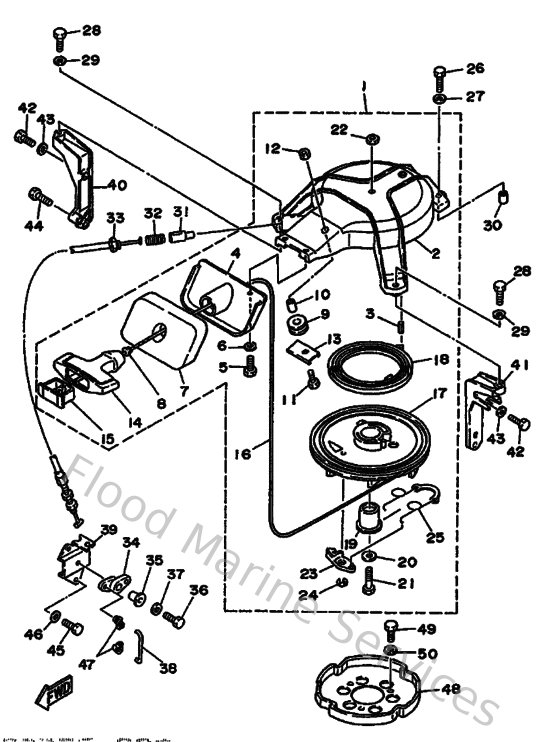

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6J8157100100
Starter Assembly
Loading…

↗
2
6J8157110094
Case, starter
Loading…

↗
3
916904001400
Pin, spring (6f2)
Loading…

↗
4
6J8157580094
Guide, Rope (6J8-15758-00-4D)
Loading…

↗
5
973130601600
Bolt, hexagon deep recess
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
6J8157620000
Seal, rubber 2
Loading…

↗
8
6A0157890000
Damper
Loading…

↗
9
6F5157520000
Roller, wire
Loading…

↗
10
6F5157530000
Bushing 1
Loading…

↗
11
973130602500
Bolt
Loading…

↗
12
953800660000
Nut(661)
Loading…

↗
13
6J8157870000
Adaptor
Loading…

↗
14
689157550100
Handle, starter
Loading…

↗
15
6F5157790200
Cover
Loading…

↗
17
6J8157140000
Drum, sheave
Loading…

↗
18
9051008M0400
Spring, spiral (677)
Loading…

↗
19
677157170100
Shaft
Loading…

↗
20
902010606000
Washer, plate
Loading…

↗
21
9010106M2700
Bolt
Loading…

↗
22
953030670000
Nut
Loading…

↗
23
676157410300
Pawl, drive
Loading…

↗
24
9343006M0200
Circlip (689)
Loading…

↗
25
6J8157050000
Spring, drive pawl
Loading…

↗
26
970140603500
Bolt(3rv)
Loading…

↗
30
995301001400
Pin, dowel
Loading…

↗
31
656157480000
Plunger, starter stop
Loading…

↗
32
905011022700
Spring, comprreshion(656)
Loading…

↗
33
6J8157700000
Cable comp., starter stop
Loading…

↗
34
6J8157460100
Arm
Loading…

↗
35
9038706M2900
Coller (6a0)
Loading…

↗
38
6J8157470000
Link
Loading…

↗
39
6J8157740100
Stay 4
Loading…

↗
40
6J8157710094
Stay 1
Loading…

↗
41
6J8157720094
Stay 2
Loading…

↗
42
973130602000
Bolt(7u8)
Loading…

↗
44
970800602000
Bolt(7u8)
Loading…

↗
47
661412620200
Joint, choke lever
Loading…

↗
48
6J8157230100
Pulley, starter
Loading…

↗
49
973210801400
Bolt, hexagon
Loading…

↗
50
929900860000
Washer, plain (663)
Loading…

↗
