Yamaha Outboard Parts - Starter - 3AMH (1997) | Flood Marine
New Search
Parts
New Outboards
Home
3AMH (1997)
Starter

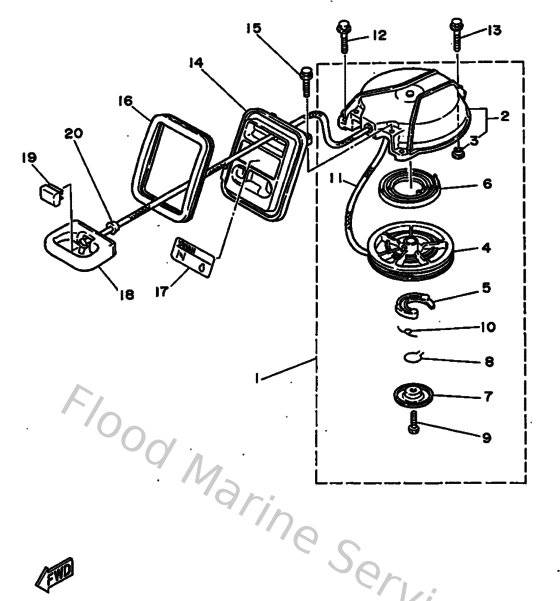

Diagram: Starter
Parts List
Reference
Description
Price
1
6L5157100000
Starter assembly
Loading…
↗
2
6L5157110000
Case, starter
Loading…
↗
3
9038706M7000
Collar (6h5)
Loading…
↗
4
6L5157140000
Drum, sheave
Loading…
↗
5
6L5157410000
Pawl, drive
Loading…
↗
6
6L5157130000
Spring, starter
Loading…
↗
7
6L5157160000
Plate, drive
Loading…
↗
8
6A1157050000
Spring, drive pawl
Loading…
↗
9
970130601200
Bolt(gh1)
Loading…
↗
10
6A1157670000
Spring, return
Loading…
↗
12
958800602000
Bolt, flange(jk3)
Loading…
↗
13
958950603500
Bolt, flange(4nx)
Loading…
↗
14
6L5157580098
Guide, rope
Loading…
↗
15
958800601600
Bolt, flange(jl8)
Loading…
↗
16
6L5157610000
Seal, rubber 1
Loading…
↗
17
6L5426770000
Graphic, front
Loading…
↗
18
6L5157550000
Handle, starter
Loading…
↗
20
6L5157890000
Damper
Loading…
↗
