40XMH (2001)
Starter

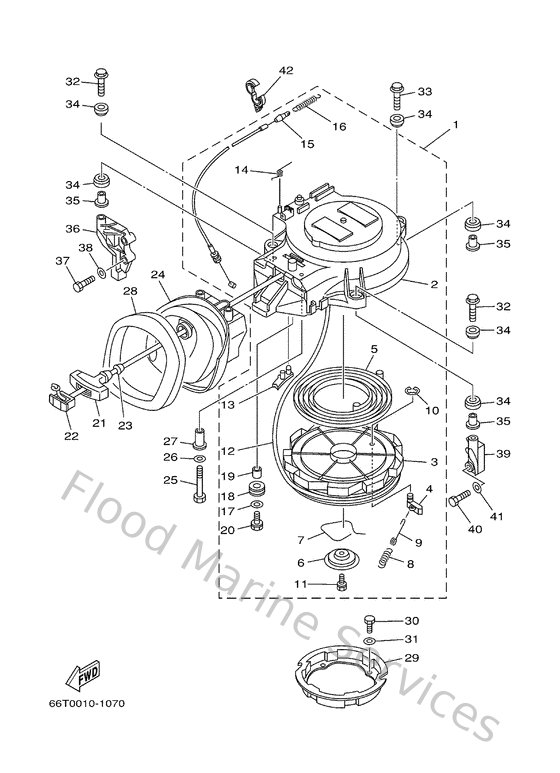

Diagram: Starter
Parts List
Reference
Description
Price
1
66T157100000
Starter assembly
Loading…
↗
2
66T157110000
Case, starter
Loading…
↗
3
66T157140000
Drum, sheave
Loading…
↗
4
63V157410000
Pawl, drive
Loading…
↗
5
66T157130000
Spring, starter
Loading…
↗
6
66T157160000
Plate, drive
Loading…
↗
7
66T157050000
Spring, drive pawl
Loading…
↗
8
66T157670000
Spring
Loading…
↗
9
66T157840000
Spring, return
Loading…
↗
10
63V157440000
Circlip
Loading…
↗
11
68T157930000
Screw
Loading…
↗
13
66T157940000
Stopper
Loading…
↗
14
66T157340000
Spring, return
Loading…
↗
15
66T157700000
Cable comp., starter stop
Loading…
↗
16
66T157310000
Retainer, spring
Loading…
↗
17
6F5157910000
Washer, lock
Loading…
↗
18
6F5157520000
Roller, wire
Loading…
↗
19
6F5157530000
Bushing 1
Loading…
↗
20
6F5157680000
Bolt
Loading…
↗
21
689157550100
Handle, starter
Loading…
↗
22
6F5157790200
Cover
Loading…
↗
23
697157890000
Damper
Loading…
↗
24
66T157580100
Guide, rope
Loading…
↗
25
970800603500
Bolt(j52)
Loading…
↗
26
929950660000
Washer, plain (646)
Loading…
↗
27
9038706M6600
Collar (6h4)
Loading…
↗
28
66T157620100
Seal, rubber 2
Loading…
↗
29
66T157230000
Pulley, starter
Loading…
↗
30
970850601000
Bolt
Loading…
↗
32
9011908M1000
Bolt, with washer
Loading…
↗
33
9011908M5100
Bolt, with washer
Loading…
↗
34
9038512M0400
Bushing (6f5)
Loading…
↗
35
9038708M0500
Collar (663)
Loading…
↗
36
66T157710094
Stay 1
Loading…
↗
37
970130603000
Bolt
Loading…
↗
38
929900660000
Washer, plain (646)
Loading…
↗
39
66T157720094
Stay 2
Loading…
↗
41
929030660000
Washer, plain (646)
Loading…
↗
