Yamaha Outboard Parts - Starter - 4ACMH (1998) | Flood Marine

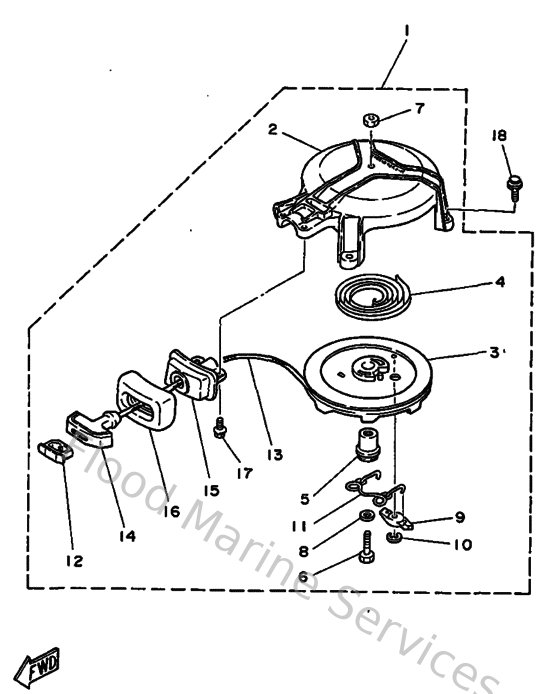

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6E0157100394
Starter assembly
Loading…

↗
2
6E4157117200
Case, starter
Loading…

↗
3
6E0157140100
Drum, sheave
Loading…

↗
4
9051008M0300
Spring, spiral (6g1)
Loading…

↗
5
6E0157170000
Shaft, starter
Loading…

↗
6
970140603500
Bolt(3rv)
Loading…

↗
7
953800660000
Nut(661)
Loading…

↗
8
9020106M3000
Washer, plate (6a1)
Loading…

↗
9
677157410100
Pawl, drive
Loading…

↗
11
6E0157050000
Spring drive pawl assembly
Loading…

↗
12
6G1157790000
Cover
Loading…

↗
14
6G1157550000
Handle, starter
Loading…

↗
15
6E3157580100
Guide, wire
Loading…

↗
16
6E0157610000
Seal, rubber 1
Loading…

↗
17
958950601600
Bolt, flange deep recess
Loading…

↗
18
958950602000
Bolt, flange(jk3)
Loading…

↗
