Yamaha Outboard Parts - Starter - 50HM (2000) | Flood Marine

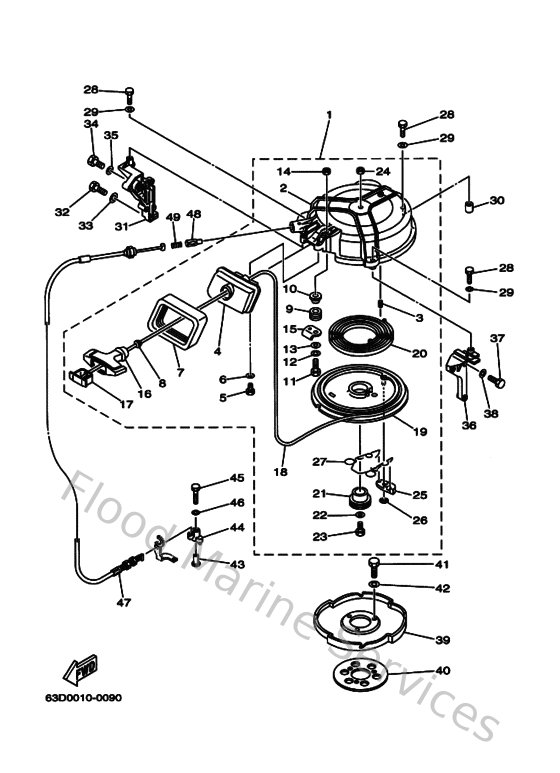

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6H415710044D
Starter assembly
Loading…

↗
2
6H4157110294
Case, starter
Loading…

↗
3
916904001800
Pin spring(664)
Loading…

↗
4
6H415758014D
Guide rope
Loading…

↗
5
970950601600
Bolt, hexagon deep recess
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
6H4157620000
Seal, rubber 2
Loading…

↗
8
6A0157890000
Damper
Loading…

↗
9
6F5157520000
Roller, wire
Loading…

↗
10
9038706M6900
Collar (688)
Loading…

↗
11
970950603000
Bolt(jf7)
Loading…

↗
12
929950610000
Washer(6a1)
Loading…

↗
14
953800660000
Nut(661)
Loading…

↗
15
6H4157870100
Stay
Loading…

↗
16
689157550100
Handle, starter
Loading…

↗
17
6F5157790200
Cover
Loading…

↗
18
9058050M0100
Wire, starter (braided) (d:5mm
Loading…

↗
19
6H4157140000
Drum, sheave
Loading…

↗
20
905100800200
Spring spiral 656157130000
Loading…

↗
21
6H4157170100
Shaft, starter
Loading…

↗
22
902010602000
Washer, plate
Loading…

↗
23
970950602000
Bolt(7u8)
Loading…

↗
25
676157410300
Pawl, drive
Loading…

↗
26
9343006M0200
Circlip (689)
Loading…

↗
27
6H4157050000
Spring drive pawl assembly
Loading…

↗
28
970800603500
Bolt(j52)
Loading…

↗
29
929950660000
Washer, plain (646)
Loading…

↗
30
995301001400
Pin, dowel
Loading…

↗
31
63D157710094
Stay 1
Loading…

↗
32
970130802500
Bolt (682)
Loading…

↗
33
929030860000
Washer, plain (663)
Loading…

↗
34
970130602000
Bolt(62y)
Loading…

↗
35
929030660000
Washer, plain (646)
Loading…

↗
36
6H4157720294
Stay 2
Loading…

↗
37
970130602500
Bolt(62y)
Loading…

↗
39
6H4157230194
Pulley, starter
Loading…

↗
40
6J881365A000
Gasket, hole cover
Loading…

↗
41
970130802000
Bolt(6td)
Loading…

↗
42
929901010000
Ybs67-10 washer, spring
Loading…

↗
43
9038706M6600
Collar (6h4)
Loading…

↗
44
63D157460000
Arm
Loading…

↗
45
970950604000
Bolt (682)
Loading…

↗
47
63D157700000
Cable comp., starter stop
Loading…

↗
48
656157480000
Plunger, starter stop
Loading…

↗
49
905011022700
Spring, comprreshion(656)
Loading…

↗
