Yamaha Outboard Parts - Starter - 6CEM (1985) | Flood Marine

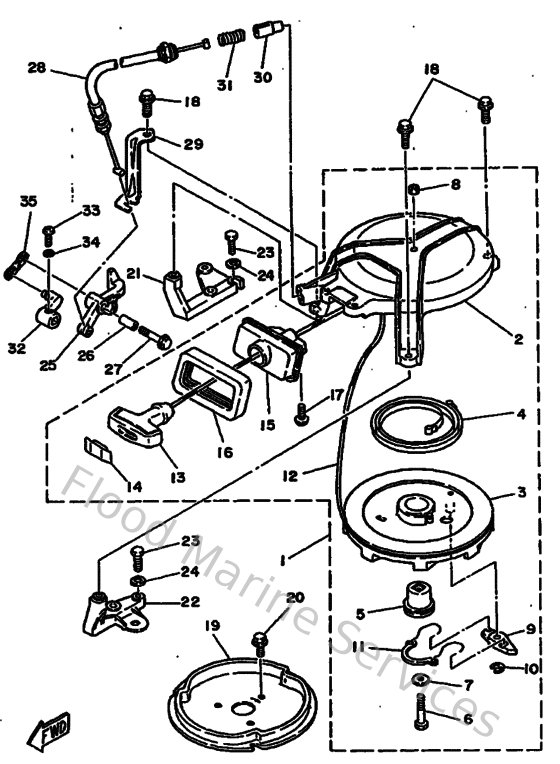

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6G1157108000
Starter assembly
Loading…

↗
2
6G1157118094
Case, Starter
Loading…

↗
3
6GH157140000
Drum, sheave
Loading…

↗
4
9051008M0300
Spring, spiral (6g1)
Loading…

↗
5
6G1157170000
Shaft, starter
Loading…

↗
6
973130603500
Bolt(3rv)
Loading…

↗
7
9020106M3000
Washer, plate (6a1)
Loading…

↗
8
953800660000
Nut(661)
Loading…

↗
9
677157410100
Pawl, drive
Loading…

↗
10
9343006M0200
Circlip (689)
Loading…

↗
11
6G1157050000
Spring, drive pawl
Loading…

↗
13
6G1157550000
Handle, starter
Loading…

↗
14
689157790100
Cover
Loading…

↗
15
6N0E57580100
Guide, rope
Loading…

↗
16
6G1157620000
Seal 2
Loading…

↗
17
9010506M1400
Bolt (6e0)
Loading…

↗
18
9010506M1500
Bolt (6e0)
Loading…

↗
19
6N0E57230094
Pulley, starter
Loading…

↗
20
9010506M2900
Bolt (6g1)
Loading…

↗
21
6G1157710094
Stay 1
Loading…

↗
22
6G1157720094
Stay 2
Loading…

↗
23
970800602000
Bolt(7u8)
Loading…

↗
24
929030660000
Washer, plain (646)
Loading…

↗
25
6G1157468100
Arm
Loading…

↗
26
6G1157640000
Collar 1
Loading…

↗
27
9010506M2400
Bolt (6g1)
Loading…

↗
28
6G1157708100
Cable comp., starter stop
Loading…

↗
29
6G1157748100
Stay 4
Loading…

↗
30
656157480000
Plunger, starter stop
Loading…

↗
31
905011022700
Spring, comprreshion(656)
Loading…

↗
32
6G1441258000
Lever, shift rod 2
Loading…

↗
33
978030501600
Screw, pan head(6b0)
Loading…

↗
34
929030560000
Washer, plain (646)
Loading…

↗
35
6G1157478000
Link
Loading…

↗
