9.9FMH (1996)
Starter

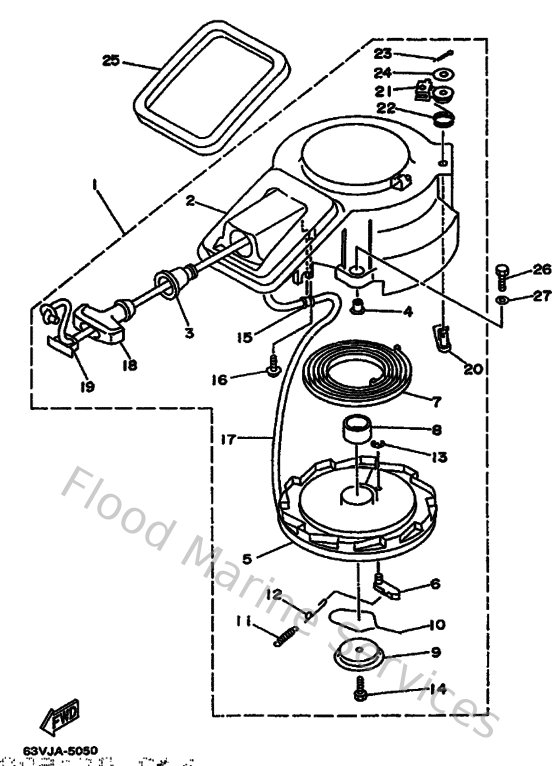

Diagram: Starter
Parts List
Reference
Description
Price
1
63V157101000
Starter assembly
Loading…
↗
2
63V157110000
Case, starter
Loading…
↗
3
63V157950000
Guide, rope
Loading…
↗
4
9038706M0500
Collar(6h4)
Loading…
↗
5
63V157140000
Drum, sheave
Loading…
↗
6
63V157410000
Pawl, drive
Loading…
↗
7
63V157130000
Spring, starter
Loading…
↗
8
63V157530000
Bush
Loading…
↗
9
63V157160000
Plate, drive
Loading…
↗
10
63V157050000
Spring, drive pawl set
Loading…
↗
12
63V157840100
Spring, return
Loading…
↗
13
63V157440000
Circlip
Loading…
↗
14
63V157680000
Screw
Loading…
↗
15
63V157640000
Collar 1
Loading…
↗
16
63V157930000
Screw
Loading…
↗
18
6G1157550000
Handle, starter
Loading…
↗
19
6G1157790000
Cover
Loading…
↗
20
63V157940000
Stopper
Loading…
↗
21
63V157480000
Plunger, starter stop
Loading…
↗
22
63V157340000
Spring, return
Loading…
↗
23
914901602000
Pin, cotter (e57)
Loading…
↗
24
63V157260000
Washer, flat
Loading…
↗
25
63V157620000
Seal, rubber 2
Loading…
↗
26
970950602000
Bolt(7u8)
Loading…
↗
27
929900660000
Washer, plain (646)
Loading…
↗
