E60HELH (2000)
Starter

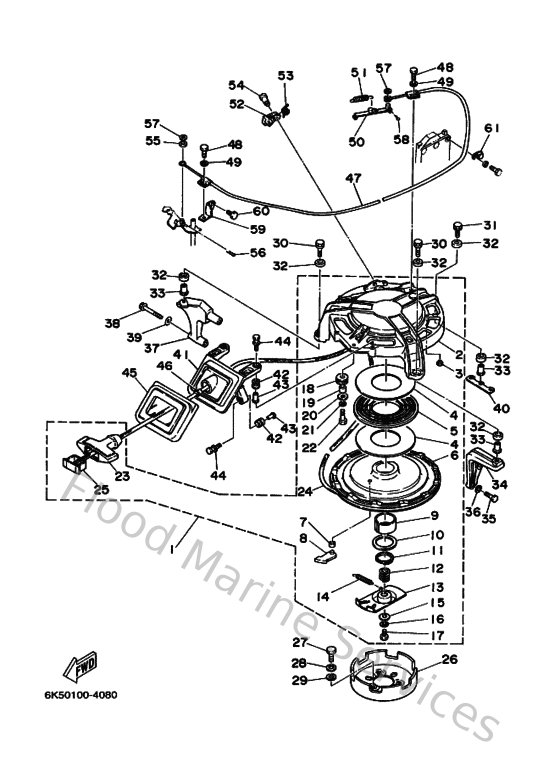

Diagram: Starter
Parts List
Reference
Description
Price
1
692W15710200
Starter assembly
Loading…
↗
2
692157110000
Case, starter
Loading…
↗
3
648157730000
Stay 3
Loading…
↗
4
663157390000
Washer, thrust 2
Loading…
↗
5
663157130000
Spring, starter
Loading…
↗
6
663157140100
Drum, sheave
Loading…
↗
7
663157640000
Collar
Loading…
↗
8
663157410200
Pawl, drive
Loading…
↗
9
663157540000
Bushing
Loading…
↗
10
663157260100
Washer, flat 1
Loading…
↗
11
663157440000
Circlip
Loading…
↗
12
663157150000
Spring, drive plate
Loading…
↗
13
663157160100
Drive, plate
Loading…
↗
14
696157340000
Spring, return
Loading…
↗
15
663157190000
Washer, thrust
Loading…
↗
16
929030610000
Washer(6a1)
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
663157520000
Roller, wire
Loading…
↗
19
663157530000
Bushing 1
Loading…
↗
20
6F5157910000
Washer, lock
Loading…
↗
22
973030602500
Bolt, hexagon
Loading…
↗
23
689157550100
Handle, starter
Loading…
↗
25
6F5157790200
Cover
Loading…
↗
26
6K5157230000
Pulley, starter
Loading…
↗
27
970130801200
Bolt(62e)
Loading…
↗
28
929030810000
Ybs67-8 washer, spring
Loading…
↗
29
929030860000
Washer, plain (663)
Loading…
↗
30
901190808700
Bolt, with washer
Loading…
↗
31
9011908M3200
Bolt, with washer
Loading…
↗
32
9038512M0400
Bushing (6f5)
Loading…
↗
33
9038708M0500
Collar (663)
Loading…
↗
34
6K5157710094
Stay 1
Loading…
↗
35
970130602500
Bolt(62y)
Loading…
↗
36
929030660000
Washer, plain (646)
Loading…
↗
37
6K5157720094
Stay 2
Loading…
↗
38
970130605500
Bolt(64d)
Loading…
↗
39
929900660000
Washer, plain (646)
Loading…
↗
40
6K5157730000
Stay 3
Loading…
↗
41
6K5157580194
Guide wire
Loading…
↗
42
6A0823170000
Damper, ignition coil
Loading…
↗
43
624425420000
Collar
Loading…
↗
44
9011906M6500
Bolt, with washer
Loading…
↗
45
6K5157620000
Seal, rubber 2
Loading…
↗
46
697157890000
Damper
Loading…
↗
47
6K5157700100
Cable comp., starter stop
Loading…
↗
48
970950601200
Bolt(gh1)
Loading…
↗
49
929950660000
Washer, plain (646)
Loading…
↗
50
663157350100
Guide, cam
Loading…
↗
51
9050608M2300
Spring, tension(6k5)
Loading…
↗
52
663157940000
Stopper
Loading…
↗
53
905081201500
Spring torsion 616436420000
Loading…
↗
54
901490509500
Screw(663)
Loading…
↗
55
663157360000
Ring, retaining 1
Loading…
↗
56
904681800800
Clip 620436610000
Loading…
↗
57
929030620000
Ybs66-6 washer, plain
Loading…
↗
58
914901601200
Pin, cotter (e57)
Loading…
↗
59
6K5157740000
Stay 4
Loading…
↗
60
970130601200
Bolt(gh1)
Loading…
↗
61
9046506M9000
Clamp
Loading…
↗
