F15AEP (2000)
Starter

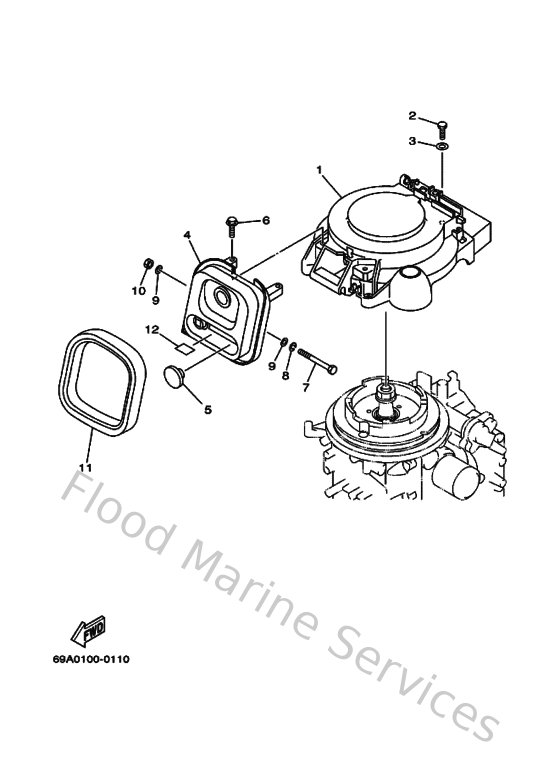

Diagram: Starter
Parts List
Reference
Description
Price
1
66M157111000
Case, starter
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
66M157581000
Guide, Rope
Loading…
↗
5
6G1427250000
Grommet
Loading…
↗
6
9011906M5900
Bolt, with washer
Loading…
↗
7
970950609000
Bolt(62y)
Loading…
↗
8
929950610000
Washer(6a1)
Loading…
↗
9
9020106M0500
Washer, plate(6e3)
Loading…
↗
10
953800670000
Nut
Loading…
↗
11
66M157620000
Seal Rubber 2
Loading…
↗
12
66M843420000
Seat, Emblem
Loading…
↗
