F4AMH (1998)
Starter

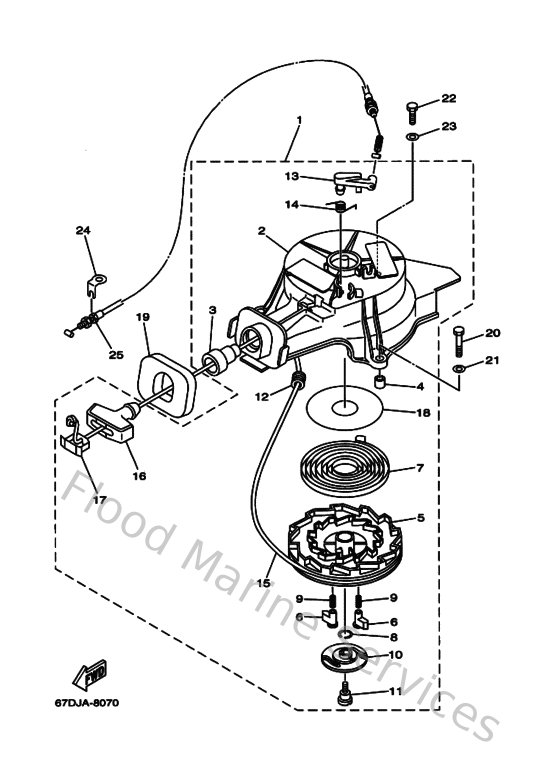

Diagram: Starter
Parts List
Reference
Description
Price
1
67D157100000
Starter assembly
Loading…
↗
2
67D157110000
Case, Starter
Loading…
↗
3
63V157950100
Guide, rope
Loading…
↗
4
67D157640000
Collar 1
Loading…
↗
5
67D157140000
Drum, sheave
Loading…
↗
6
67D157410000
Pawl, drive
Loading…
↗
7
67D157130000
Spring, starter
Loading…
↗
8
67D157050000
Spring, drive pawl
Loading…
↗
9
67D157670000
Spring
Loading…
↗
10
67D157350000
Guide, cam
Loading…
↗
11
67D157930000
Screw
Loading…
↗
12
63V157640000
Collar 1
Loading…
↗
13
67D157940000
Stopper
Loading…
↗
14
67D157340000
Spring, return
Loading…
↗
16
6G1157550000
Handle, starter
Loading…
↗
17
6G1157790000
Cover
Loading…
↗
18
67D157390000
Washer, thrust
Loading…
↗
19
67D157620000
Seal Rubber 2
Loading…
↗
20
970950603500
Bolt(j52)
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
970950602000
Bolt(7u8)
Loading…
↗
23
929950660000
Washer, plain (646)
Loading…
↗
24
67D157720000
Stay 2
Loading…
↗
25
67D157700000
Cable comp., starter stop
Loading…
↗
