F8CMH (2001)
Starter

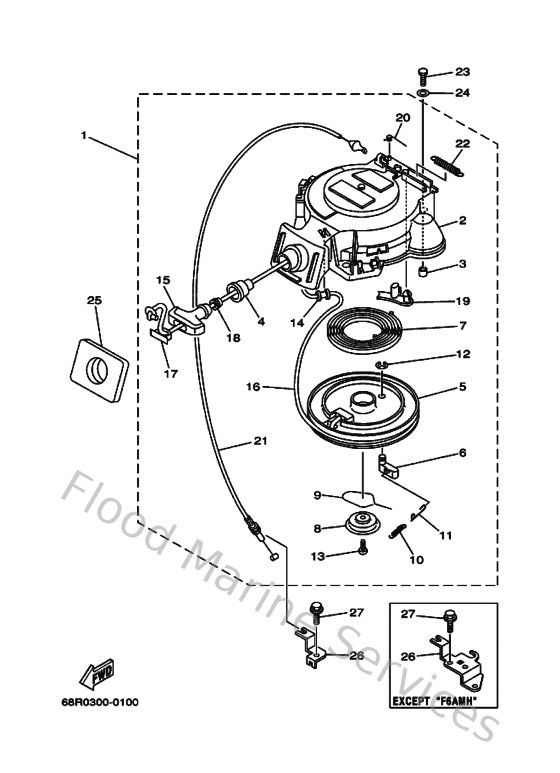

Diagram: Starter
Parts List
Reference
Description
Price
1
68T157100100
Starter assembly
Loading…
↗
2
68T157110100
Case, Starter
Loading…
↗
3
67D157640000
Collar 1
Loading…
↗
4
68T157950000
Guide, rope
Loading…
↗
5
63V157140000
Drum, sheave
Loading…
↗
6
63V157410000
Pawl, drive
Loading…
↗
7
63V157130000
Spring, starter
Loading…
↗
8
68T157160000
Plate, drive
Loading…
↗
9
63V157050100
Spring, drive pawl
Loading…
↗
10
63V157670100
Spring
Loading…
↗
11
68T157840000
Spring, return
Loading…
↗
12
63V157440000
Circlip
Loading…
↗
13
68T157930000
Screw
Loading…
↗
14
68T157640000
Collar 1
Loading…
↗
15
6G1157550000
Handle, starter
Loading…
↗
16
63V157510000
Starter rope (5x50000mm)
Loading…
↗
17
6G1157790000
Cover
Loading…
↗
18
6A0157890000
Damper
Loading…
↗
19
66T157940000
Stopper
Loading…
↗
20
66T157340000
Spring, return
Loading…
↗
21
68T157700000
Cable comp., starter stop
Loading…
↗
22
66T157310000
Retainer, spring
Loading…
↗
23
970950602000
Bolt(7u8)
Loading…
↗
24
929950660000
Washer, plain (646)
Loading…
↗
25
68T157620000
Seal, rubber 2
Loading…
↗
26
68T157741000
Stay 4
Loading…
↗
27
9010906M8600
Bolt
Loading…
↗
