F9.9CMH (1998)
Starter

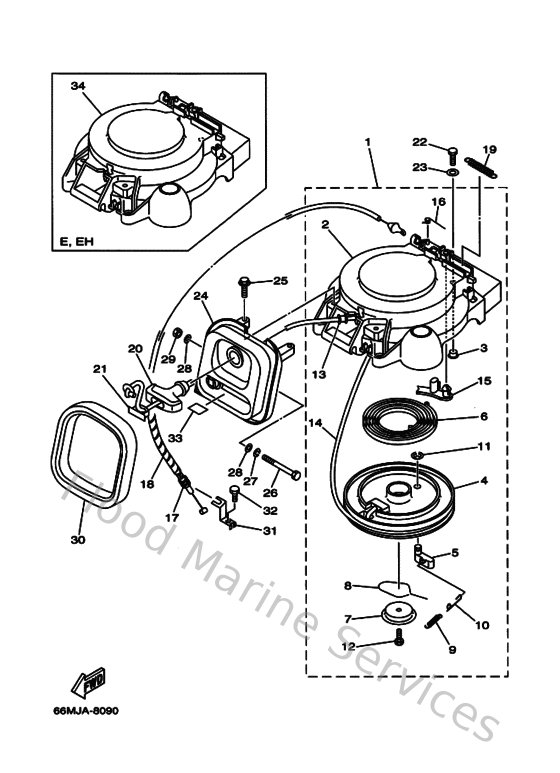

Diagram: Starter
Parts List
Reference
Description
Price
1
66M157100000
Starter Assembly
Loading…
↗
2
66M157110000
Case, starter
Loading…
↗
3
9038706M0500
Collar(6h4)
Loading…
↗
4
63V157140000
Drum, sheave
Loading…
↗
5
63V157410000
Pawl, drive
Loading…
↗
6
63V157130000
Spring, starter
Loading…
↗
7
63V157160000
Plate, drive
Loading…
↗
8
63V157051000
Spring, drive pawl
Loading…
↗
9
63V157670100
Spring
Loading…
↗
10
63V157840100
Spring, return
Loading…
↗
11
63V157440000
Circlip
Loading…
↗
12
68T157930000
Screw
Loading…
↗
13
63V157640000
Collar 1
Loading…
↗
15
66T157940000
Stopper
Loading…
↗
16
66T157340000
Spring, return
Loading…
↗
17
66M157700000
Cable comp., starter stop
Loading…
↗
18
9044606M9000
Hose
Loading…
↗
19
66T157310000
Retainer, spring
Loading…
↗
20
6G1157550000
Handle, starter
Loading…
↗
21
6G1157790000
Cover
Loading…
↗
22
970950602000
Bolt(7u8)
Loading…
↗
23
929950660000
Washer, plain (646)
Loading…
↗
24
66M157580000
Guide, Rope
Loading…
↗
25
9011906M5900
Bolt, with washer
Loading…
↗
26
970950609000
Bolt(62y)
Loading…
↗
27
929950610000
Washer(6a1)
Loading…
↗
28
9020106M0500
Washer, plate(6e3)
Loading…
↗
29
953800670000
Nut
Loading…
↗
30
66M157620000
Seal Rubber 2
Loading…
↗
31
66M157740000
Stay 4
Loading…
↗
32
9010906M8600
Bolt
Loading…
↗
33
66M843420000
Seat, Emblem
Loading…
↗
