Yamaha Outboard Parts - Starter - FT8DMHSL (2001) | Flood Marine

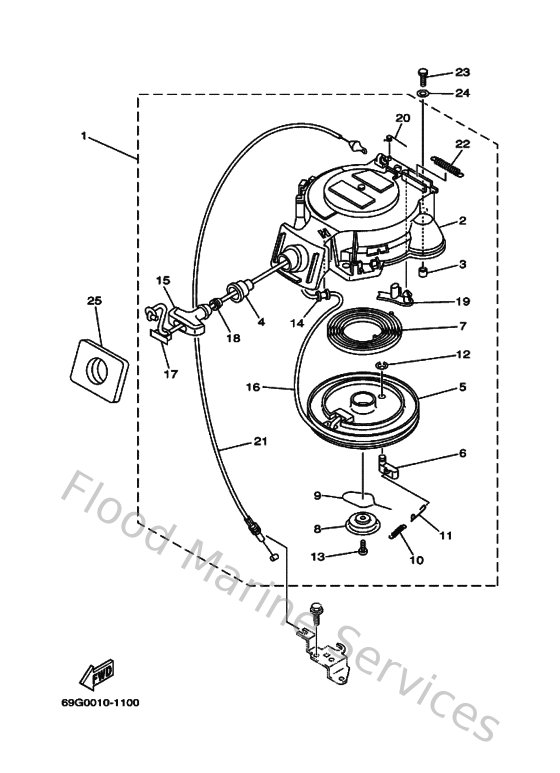

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
68T157100100
Starter assembly
Loading…

↗
2
68T157110100
Case, Starter
Loading…

↗
3
67D157640000
Collar 1
Loading…

↗
4
68T157950000
Guide, rope
Loading…

↗
5
63V157140000
Drum, sheave
Loading…

↗
6
63V157410000
Pawl, drive
Loading…

↗
7
63V157130000
Spring, starter
Loading…

↗
8
68T157160000
Plate, drive
Loading…

↗
9
63V157050100
Spring, drive pawl
Loading…

↗
10
63V157670100
Spring
Loading…

↗
11
68T157840000
Spring, return
Loading…

↗
12
63V157440000
Circlip
Loading…

↗
13
68T157930000
Screw
Loading…

↗
14
68T157640000
Collar 1
Loading…

↗
15
6G1157550000
Handle, starter
Loading…

↗
16
63V157510000
Starter rope (5x50000mm)
Loading…

↗
17
6G1157790000
Cover
Loading…

↗
18
6A0157890000
Damper
Loading…

↗
19
66T157940000
Stopper
Loading…

↗
20
66T157340000
Spring, return
Loading…

↗
21
68T157700000
Cable comp., starter stop
Loading…

↗
22
66T157310000
Retainer, spring
Loading…

↗
23
970950602000
Bolt(7u8)
Loading…

↗
24
929950660000
Washer, plain (646)
Loading…

↗
25
68T157620000
Seal, rubber 2
Loading…

↗
