50DEMTO (1994)
Starting Motor

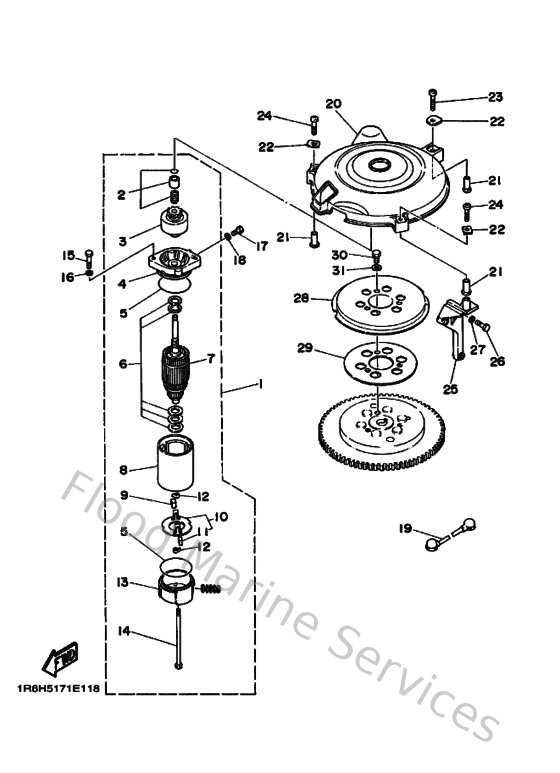

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
6F5818001100
Starting motor assembly
Loading…
↗
2
689818571100
Pinion stopper set
Loading…
↗
3
689818071200
Pinion assembly
Loading…
↗
4
6F5818301100
Front cover assembly
Loading…
↗
5
689818471100
O-ring
Loading…
↗
6
689818091100
Washer kit
Loading…
↗
7
689818501200
Armature assembly
Loading…
↗
8
689818101100
Stator ass'y
Loading…
↗
9
689818111100
Brush 1
Loading…
↗
10
689818401100
Brush holder assembly
Loading…
↗
11
689818121100
Brush 2
Loading…
↗
12
689818131000
Spring, brush
Loading…
↗
13
689818201100
Rear cover ass'y
Loading…
↗
14
689818261000
Bolt
Loading…
↗
15
970130803000
Bolt
Loading…
↗
16
929900860000
Washer, plain (663)
Loading…
↗
17
970130801600
Bolt, hexagon
Loading…
↗
19
6H4821170000
Wire, lead
Loading…
↗
20
6H4813370100
Cover, flywheel
Loading…
↗
21
9038706M6500
Collar (6h4)
Loading…
↗
22
9020906M0400
Washer
Loading…
↗
23
978950604000
Screw pan head
Loading…
↗
24
978850603500
Screw, pan head(6h4)
Loading…
↗
25
6H4157720294
Stay 2
Loading…
↗
26
973130602500
Bolt
Loading…
↗
27
929900660000
Washer, plain (646)
Loading…
↗
28
6J815723E100
Pulley, starter
Loading…
↗
29
6J881365A000
Gasket, hole cover
Loading…
↗
30
970210801400
Bolt, hexagon
Loading…
↗
