50GETO (2001)
Starting Motor

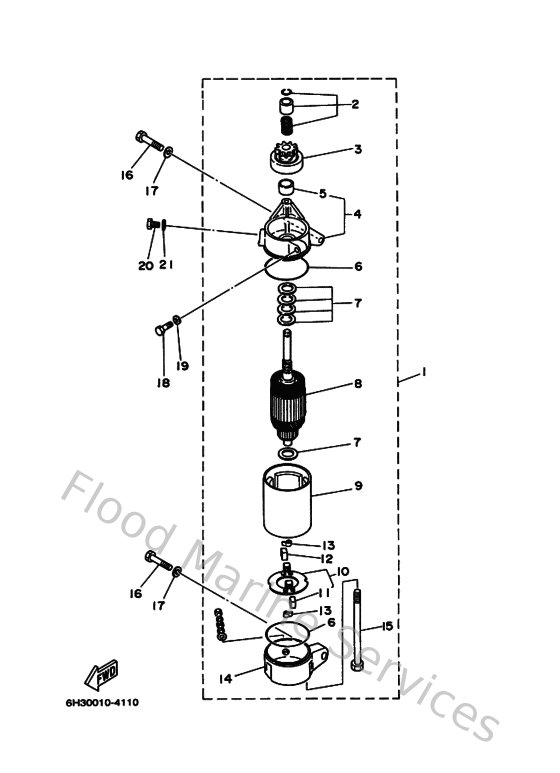

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
6H3818001100
Starting motor assembly
Loading…
↗
2
689818571100
Pinion stopper set
Loading…
↗
3
6H3818071000
Pinion assembly
Loading…
↗
4
6H3818301000
Front cover assembly
Loading…
↗
5
689818310000
Metal, front
Loading…
↗
6
689818471100
O-ring
Loading…
↗
7
689818091100
Washer kit
Loading…
↗
8
689818501200
Armature assembly
Loading…
↗
9
6H3818101000
Stator assembly
Loading…
↗
10
689818401100
Brush holder assembly
Loading…
↗
11
689818121100
Brush 2
Loading…
↗
12
689818111100
Brush 1
Loading…
↗
13
689818131000
Spring, brush
Loading…
↗
14
6H3818201100
Rear cover assembly
Loading…
↗
15
689818261000
Bolt
Loading…
↗
16
970130803500
Bolt
Loading…
↗
17
929030860000
Washer, plain (663)
Loading…
↗
18
970130602500
Bolt(62y)
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
970130801600
Bolt, hexagon
Loading…
↗
