Yamaha Outboard Parts - Starting Motor - 50HM (2001) | Flood Marine

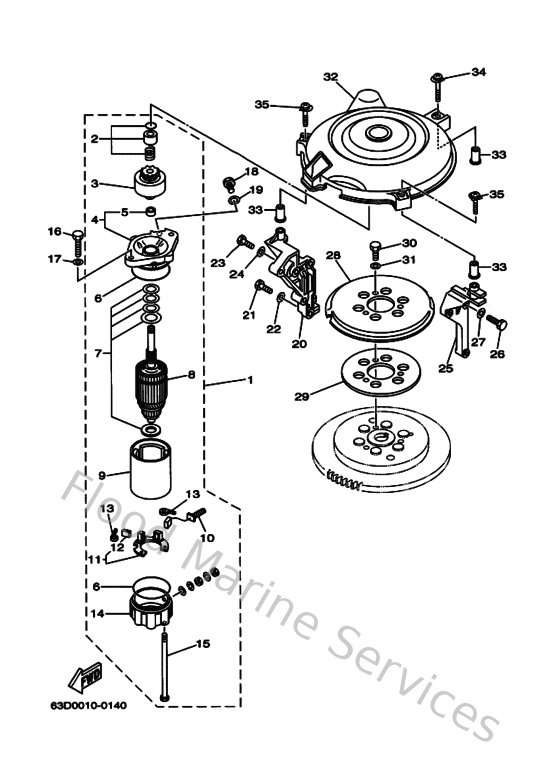

Diagram: Starting Motor

Diagram

Parts List

Reference
Description
Price


1
6F5818001100
Starting motor assembly
Loading…

↗
2
689818571100
Pinion stopper set
Loading…

↗
3
689818071200
Pinion assembly
Loading…

↗
4
6F5818301100
Front cover assembly
Loading…

↗
5
689818310000
Metal, front
Loading…

↗
6
689818471100
O-ring
Loading…

↗
7
689818091100
Washer kit
Loading…

↗
8
689818501200
Armature assembly
Loading…

↗
9
689818101100
Stator ass'y
Loading…

↗
10
689818111100
Brush 1
Loading…

↗
11
689818401100
Brush holder assembly
Loading…

↗
12
689818121100
Brush 2
Loading…

↗
13
689818131000
Spring, brush
Loading…

↗
14
689818201100
Rear cover ass'y
Loading…

↗
15
689818261000
Bolt
Loading…

↗
16
970240803000
Bolt
Loading…

↗
17
929030860000
Washer, plain (663)
Loading…

↗
18
970130801600
Bolt, hexagon
Loading…

↗
19
929901010000
Ybs67-10 washer, spring
Loading…

↗
20
63D15771004D
Stay 1
Loading…

↗
21
970130802500
Bolt (682)
Loading…

↗
23
970130602000
Bolt(62y)
Loading…

↗
24
929030660000
Washer, plain (646)
Loading…

↗
25
6H4157720294
Stay 2
Loading…

↗
26
970130602500
Bolt(62y)
Loading…

↗
28
6J815723E100
Pulley, starter
Loading…

↗
29
6J881365A000
Gasket, hole cover
Loading…

↗
30
970130801400
Bolt(692)
Loading…

↗
32
6H4813370100
Cover, flywheel
Loading…

↗
33
9038706M6500
Collar (6h4)
Loading…

↗
34
9015906M2100
Screw, with washer(61c)
Loading…

↗
35
9015906M2200
Screw, with washer(61c)
Loading…

↗
