70BETO (1992)
Starting Motor

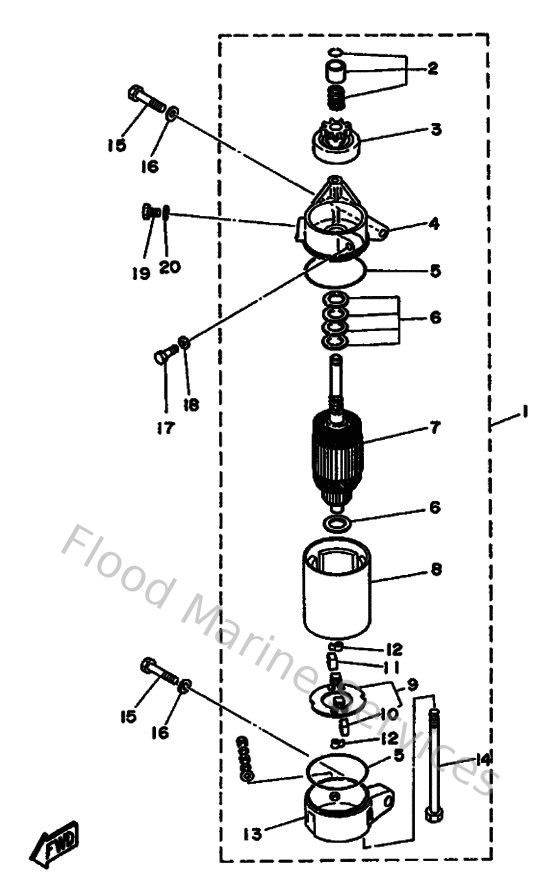

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
6H3818001000
Starting motor assembly
Loading…
↗
2
689818571100
Pinion stopper set
Loading…
↗
3
6H3818071000
Pinion assembly
Loading…
↗
4
6H3818301000
Front cover assembly
Loading…
↗
5
689818471100
O-ring
Loading…
↗
6
689818091100
Washer kit
Loading…
↗
7
689818501100
Armature assembly
Loading…
↗
8
6H3818101000
Stator assembly
Loading…
↗
9
689818401100
Brush holder assembly
Loading…
↗
10
689818121100
Brush 2
Loading…
↗
11
689818111100
Brush 1
Loading…
↗
12
689818131000
Spring, brush
Loading…
↗
13
6H3818201100
Rear cover assembly
Loading…
↗
14
689818261000
Bolt
Loading…
↗
15
973130803500
Bolt
Loading…
↗
16
929900860000
Washer, plain (663)
Loading…
↗
17
9010106M2700
Bolt
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
973130801600
Bolt, hexagon
