Yamaha Outboard Parts - Starting Motor - F15AEP (2000) | Flood Marine
New Search
Parts
New Outboards
Home
F15AEP (2000)
Starting Motor

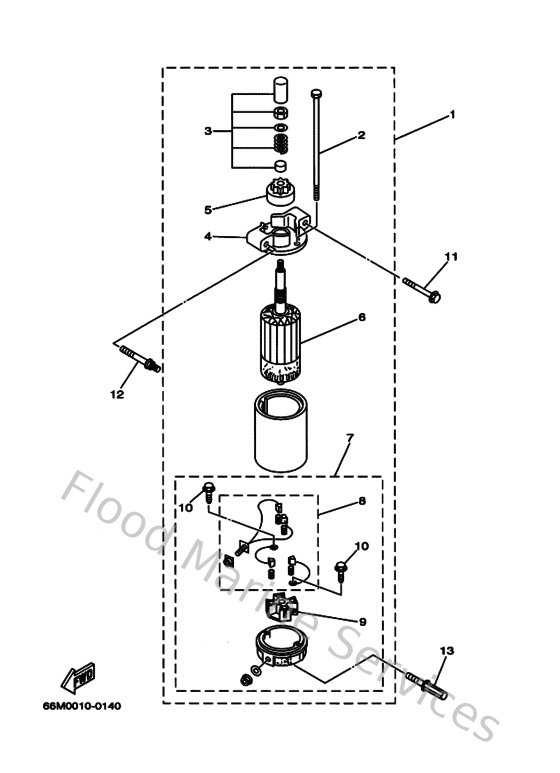

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
66M818000100
Starting motor assembly
Loading…
↗
2
65W818260000
Bolt
Loading…
↗
3
65W818570100
Retainer
Loading…
↗
4
66M818300000
Front bracket assembly
Loading…
↗
5
65W818070000
Gear assembly, starting motor
Loading…
↗
6
65W818500100
Armature assembly
Loading…
↗
7
66M818200000
Rear bracket assembly
Loading…
↗
8
65W818010000
Brush set
Loading…
↗
9
65W818400000
Brush holder assembly
Loading…
↗
10
65W8182S0000
Screw
Loading…
↗
11
9011908M3900
Bolt, with washer
Loading…
↗
12
9010908M7800
Bolt
Loading…
↗
13
9010908M8500
Bolt
Loading…
↗
