F30AMS (2001)
Starting Motor

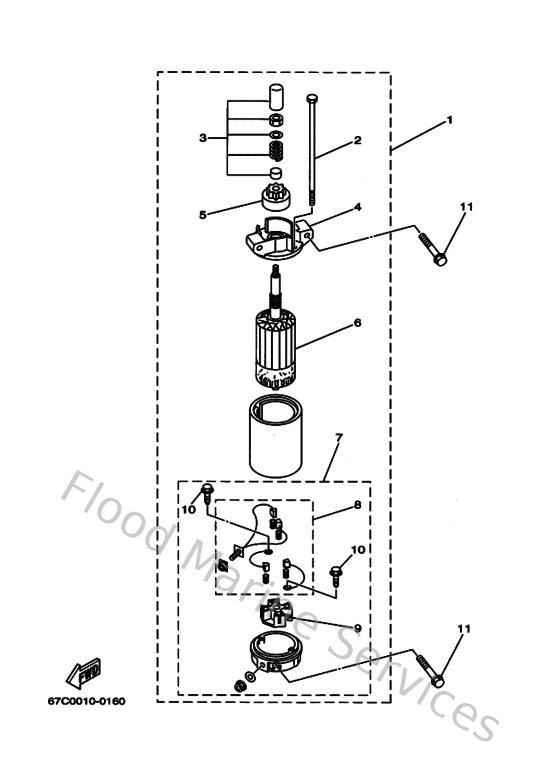

Diagram: Starting Motor
Parts List
Reference
Description
Price
1
67C818000000
Starting motor assembly
Loading…
↗
2
67C818260000
Bolt
Loading…
↗
3
65W818570100
Retainer
Loading…
↗
4
65W818300000
Front Bracket assembly
Loading…
↗
5
65W818070000
Gear assembly, starting motor
Loading…
↗
7
65W818200000
Rear bracket assembly
Loading…
↗
8
65W818010000
Brush set
Loading…
↗
9
65W818400000
Brush holder assembly
Loading…
↗
10
65W8182S0000
Screw
Loading…
↗
11
9011908M3900
Bolt, with washer
Loading…
↗
