Yamaha Outboard Parts - Starting Motor - FT25BE (2000) | Flood Marine

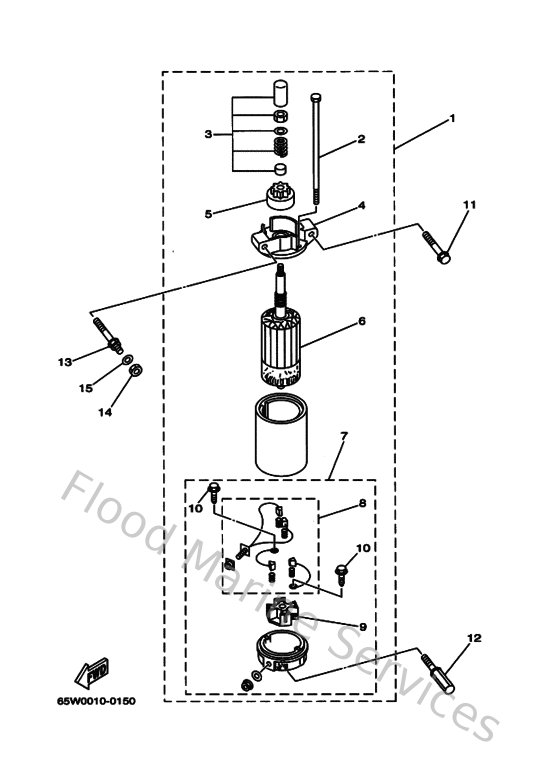

Diagram: Starting Motor

Diagram

Parts List

Reference
Description
Price


1
65W818000100
Starting motor assembly
Loading…

↗
2
65W818260000
Bolt
Loading…

↗
3
65W818570100
Retainer
Loading…

↗
4
65W818300000
Front Bracket assembly
Loading…

↗
5
65W818070000
Gear assembly, starting motor
Loading…

↗
6
65W818500100
Armature assembly
Loading…

↗
7
65W818200000
Rear bracket assembly
Loading…

↗
8
65W818010000
Brush set
Loading…

↗
9
65W818400000
Brush holder assembly
Loading…

↗
10
65W8182S0000
Screw
Loading…

↗
11
9011908M3900
Bolt, with washer
Loading…

↗
12
9010908M7700
Bolt
Loading…

↗
13
9010908M7800
Bolt
Loading…

↗
14
953800870000
Nut(661)
Loading…

↗
15
929900860000
Washer, plain (663)
Loading…

↗
