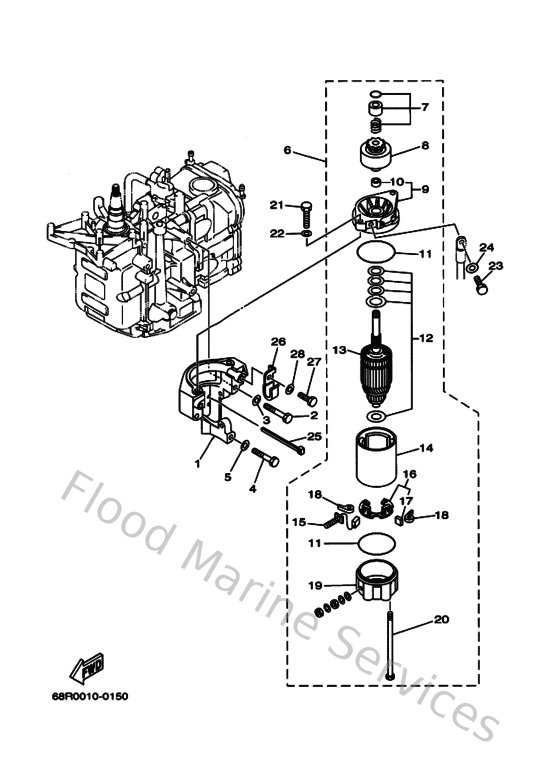

Diagram: Starting Motor

Diagram

Parts List

Reference
Description
Price


1
68T818220094
Bracket, starting motor
Loading…

↗
2
970130805500
Bolt, hexagon
Loading…

↗
3
929030860000
Washer, plain (663)
Loading…

↗
4
970130804000
Bolt, Hexagon
Loading…

↗
5
929901010000
Ybs67-10 washer, spring
Loading…

↗
25
9046511M1000
Clamp
Loading…

↗
26
9046508M9900
Clamp
Loading…

↗
27
970950601200
Bolt(gh1)
Loading…

↗
28
929950660000
Washer, plain (646)
Loading…

↗
