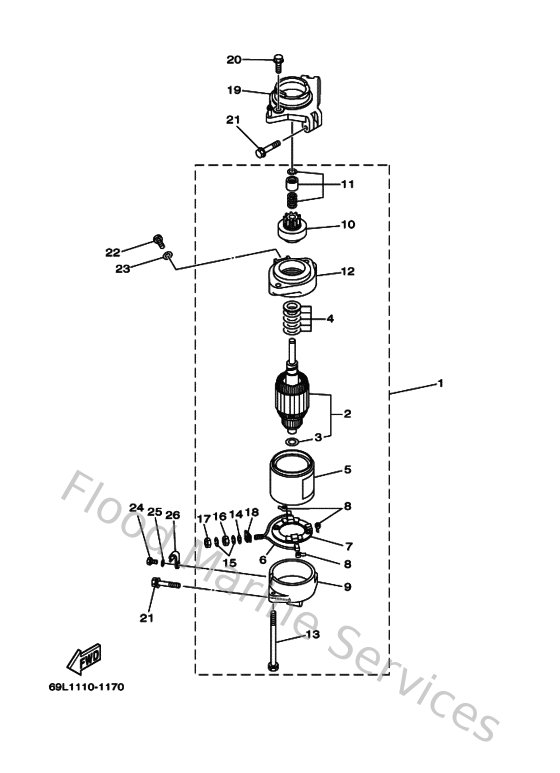

Diagram: Starting Motor

Diagram

Parts List

Reference
Description
Price


1
69L818000000
Starting motor assy
Loading…

↗
2
61A818500100
Armature Assy
Loading…

↗
3
61A818240000
Washer 2
Loading…

↗
4
61A818090000
Washer kit
Loading…

↗
6
6K7818011000
Brush Set
Loading…

↗
7
61A818400000
Brush holder assy
Loading…

↗
8
6E5818131000
Spring Brush
Loading…

↗
9
61A818200000
Rear Bracket Assy
Loading…

↗
10
61A818070000
Gear Assy Starting Motor
Loading…

↗
11
61H818570000
Retainer
Loading…

↗
12
61A818300000
Front Bracket Assy
Loading…

↗
13
6K7818261000
Bolt
Loading…

↗
14
6E58182E1000
Washer, spring
Loading…

↗
15
6E58182F1000
Washer,plain
Loading…

↗
16
6E58182A1000
Nut
Loading…

↗
17
6E58182K1000
Nut
Loading…

↗
18
6K78182G1000
Bush, terminal
Loading…

↗
19
61A818220094
Bracket, starting motor
Loading…

↗
20
9011908M7600
Bolt, with washer(6e5)
Loading…

↗
21
9011908M7700
Bolt, with washer(6e5)
Loading…

↗
22
970950801600
Bolt, hexagon deep recess
Loading…

↗
23
929950860000
Washer, plain (663)
Loading…

↗
24
970950601200
Bolt(gh1)
Loading…

↗
25
929950660000
Washer, plain (646)
Loading…

↗
26
9046506M8600
Clamp
