20CMH (1993)
Steering

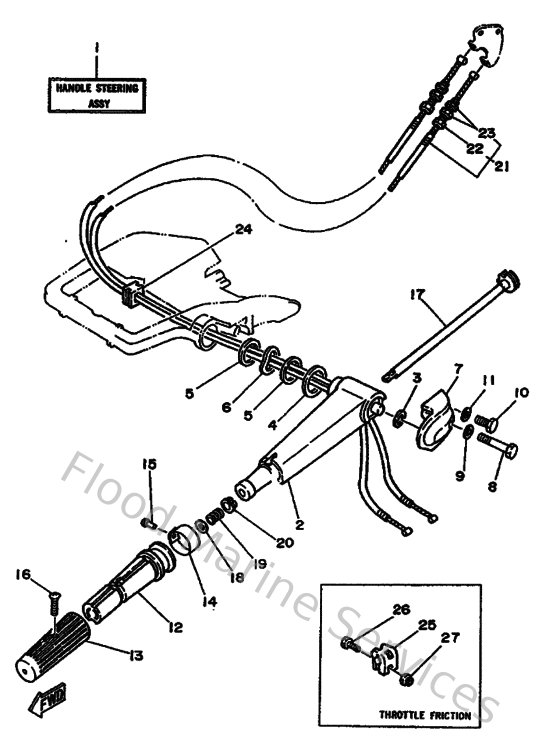

Diagram: Steering
Parts List
Reference
Description
Price
3
905601407600
Spacer 648421550000
Loading…
↗
4
902023404300
Spacer Handle 2 (648)
Loading…
↗
5
9020128M0000
Rondelle, Plate
Loading…
↗
6
9020628M0700
Rondelle, Ondulee
Loading…
↗
8
973950605000
Bolt(jf7)
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
970800602000
Bolt(7u8)
Loading…
↗
12
664421190000
Grip, steering handle
Loading…
↗
13
6G1421770000
Rubber, handle
Loading…
↗
14
6A9421370100
Indicator, Throttle
Loading…
↗
15
9026902M0900
Rivet(6l5)
Loading…
↗
16
901520501100
Screw, countersunk
Loading…
↗
17
689421380000
Lever, throttle
Loading…
↗
18
929901060000
Washer, plate
Loading…
↗
19
905012321500
Spring (655)
Loading…
↗
20
903860803200
Bushing (650)
Loading…
↗
21
6J0263110200
Cable, throttle 1
Loading…
↗
22
9012306M0000
Bolt(6A9)
Loading…
↗
23
901700618300
Nut, hexagon(664)
Loading…
↗
24
904801215600
Grommet
Loading…
↗
25
656421260100
Piece, friction
Loading…
↗
26
973950602000
Bolt(7u8)
Loading…
↗
