Yamaha Outboard Parts - Steering - 25NWH (1999) | Flood Marine

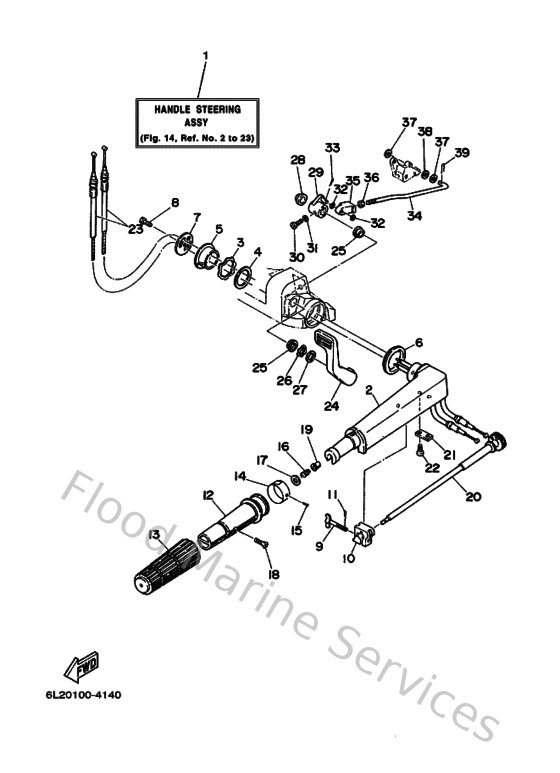

Diagram: Steering

Diagram

Parts List

Reference
Description
Price


1
6L2W0084004D
Handle Steering assembly
Loading…

↗
2
6G142111114D
Handle, steering
Loading…

↗
3
9020636M2100
Washer, wave(63v)
Loading…

↗
4
9020236M5500
Washer, plate(63v)
Loading…

↗
5
9038633M9600
Bush(63v)
Loading…

↗
6
9038634M9700
Bush(63v)
Loading…

↗
7
6G1421310100
Cover, handle steering
Loading…

↗
8
970950602000
Bolt(7u8)
Loading…

↗
9
6G1421250100
Bolt, friction adjusting
Loading…

↗
10
6G1421260000
Piece, friction
Loading…

↗
11
914901601000
Pin, cotter
Loading…

↗
12
664421190000
Grip, steering handle
Loading…

↗
13
6F642177A000
Rubber, handle
Loading…

↗
14
6L2421370000
Indicator, throttle
Loading…

↗
15
9026902M0900
Rivet(6l5)
Loading…

↗
16
905012321500
Spring (655)
Loading…

↗
17
929901060000
Washer, plate
Loading…

↗
18
9014905M1300
Screw, countersunk
Loading…

↗
19
903860803200
Bushing (650)
Loading…

↗
20
6EGG21380000
Lever, throttle
Loading…

↗
21
6E0421590200
Stay
Loading…

↗
22
978850501200
Screw,pan head (646)
Loading…

↗
23
6L2263010000
Throttle cable assembly
Loading…

↗
24
6L2441110194
Handle, gear shift
Loading…

↗
25
9038615M7300
Bush(6l2)
Loading…

↗
26
9020615M1800
Washer, wave(6l2)
Loading…

↗
27
9020215M3700
Washer, plate(6l2)
Loading…

↗
28
9038612M7200
Bush(6l2)
Loading…

↗
29
6L2441250094
Lever, shift rod
Loading…

↗
30
970800602000
Bolt(7u8)
Loading…

↗
31
929950660000
Washer, plain (646)
Loading…

↗
32
902020600900
Washer plate 626427510000
Loading…

↗
33
914902001000
Pin, cotter
Loading…

↗
34
6L2441240000
Link, shift rod
Loading…

↗
35
6L2263630000
End, cable
Loading…

↗
36
953800670000
Nut
Loading…

↗
37
902020508800
Washer, plate (666)
Loading…

↗
38
9020205M3800
Washer, plate(6l2)
Loading…

↗
39
9046805M0300
Clip(6j8)
Loading…

↗
