30DEO (1993)
Steering

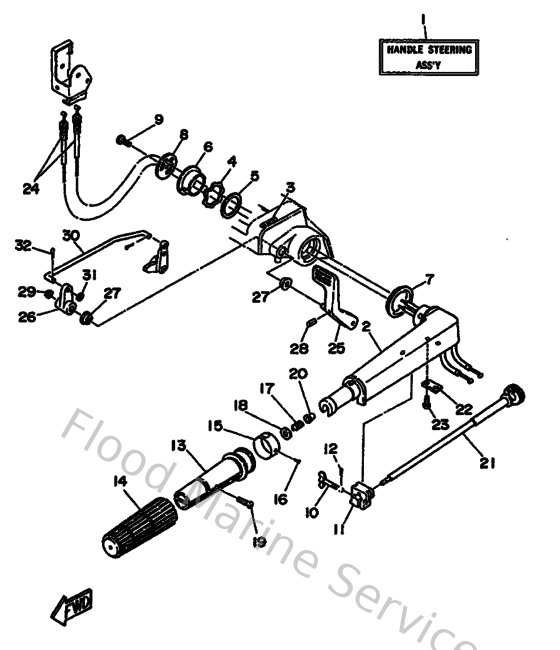

Diagram: Steering
Parts List
Reference
Description
Price
3
6E0441911100
Indicator, shift
Loading…
↗
4
9020635M2000
Washer, wave(6j8)
Loading…
↗
5
9020235M2400
Washer (6g1)
Loading…
↗
6
9038634M4000
Bushing (6g1)
Loading…
↗
7
9038643M6200
Bush(6J8)
Loading…
↗
8
6G1421310100
Cover, handle steering
Loading…
↗
9
973950601600
Bolt, hexagon deep recess
Loading…
↗
10
6G1421250100
Bolt, friction adjusting
Loading…
↗
11
6G1421260000
Piece, friction
Loading…
↗
12
914901601000
Pin, cotter
Loading…
↗
13
664421190000
Grip, steering handle
Loading…
↗
14
6G1421770000
Rubber, handle
Loading…
↗
15
6J8421370000
Indicator, throttle
Loading…
↗
16
9026902M0900
Rivet(6l5)
Loading…
↗
17
905012321500
Spring (655)
Loading…
↗
18
929901060000
Washer, plate
Loading…
↗
19
9014905M1300
Screw, countersunk
Loading…
↗
20
903860803200
Bushing (650)
Loading…
↗
21
6G1421380100
Lever, throttle
Loading…
↗
22
6E0421590200
Stay
Loading…
↗
23
978950501200
Screw,pan head (646)
Loading…
↗
24
6J8263010000
Throttle cable assembly
Loading…
↗
26
6J8441250000
Lever, shift rod
Loading…
↗
27
682441320000
Bushing
Loading…
↗
28
916903031800
Pin, spring (6h3)
Loading…
↗
29
9038606M1200
Bushing (688)
Loading…
↗
30
6J8441240000
Link, shift rod
Loading…
↗
31
929900620000
Ybs66-6 washer, plain
Loading…
↗
32
914902001500
Pin, cotter (648)
Loading…
↗
