Yamaha Outboard Parts - Steering - 30DMSLH (2000) | Flood Marine

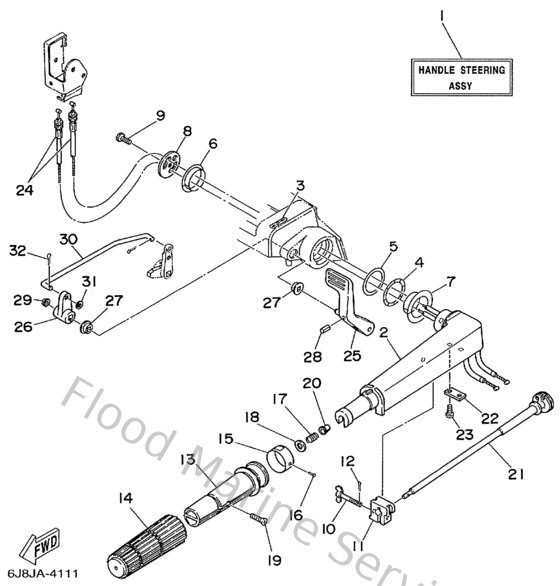

Diagram: Steering

Diagram

Parts List

Reference
Description
Price


1
6J8W0084104D
Handle steering assembly
Loading…

↗
2
6G142111114D
Handle, steering
Loading…

↗
3
6E0441911100
Indicator, shift
Loading…

↗
4
9020636M2100
Washer, wave(63v)
Loading…

↗
5
9020236M5500
Washer, plate(63v)
Loading…

↗
6
9038633M9600
Bush(63v)
Loading…

↗
7
9038634M9700
Bush(63v)
Loading…

↗
8
6G1421310100
Cover, handle steering
Loading…

↗
9
970800602000
Bolt(7u8)
Loading…

↗
10
6G1421250100
Bolt, friction adjusting
Loading…

↗
11
6G1421260000
Piece, friction
Loading…

↗
12
914901601000
Pin, cotter
Loading…

↗
13
664421190000
Grip, steering handle
Loading…

↗
14
6F642177A000
Rubber, handle
Loading…

↗
15
6J8421370000
Indicator, throttle
Loading…

↗
16
9026902M0900
Rivet(6l5)
Loading…

↗
17
905012321500
Spring (655)
Loading…

↗
18
929031060000
Washer, plate
Loading…

↗
19
9014905M1300
Screw, countersunk
Loading…

↗
20
903860803200
Bushing (650)
Loading…

↗
21
6EGG21380000
Lever, throttle
Loading…

↗
22
6E0421590200
Stay
Loading…

↗
23
978850501200
Screw,pan head (646)
Loading…

↗
24
6J8263010000
Throttle cable assembly
Loading…

↗
25
6J844111018D
Handle, gear shift
Loading…

↗
26
6J8441250000
Lever, shift rod
Loading…

↗
27
682441320000
Bushing
Loading…

↗
28
916903031800
Pin, spring (6h3)
Loading…

↗
29
9038606M1200
Bushing (688)
Loading…

↗
30
6J8441240000
Link, shift rod
Loading…

↗
31
929900620000
Ybs66-6 washer, plain
Loading…

↗
32
914902001200
Pin, cotter (648)
Loading…

↗
