30HMH (2001)
Steering

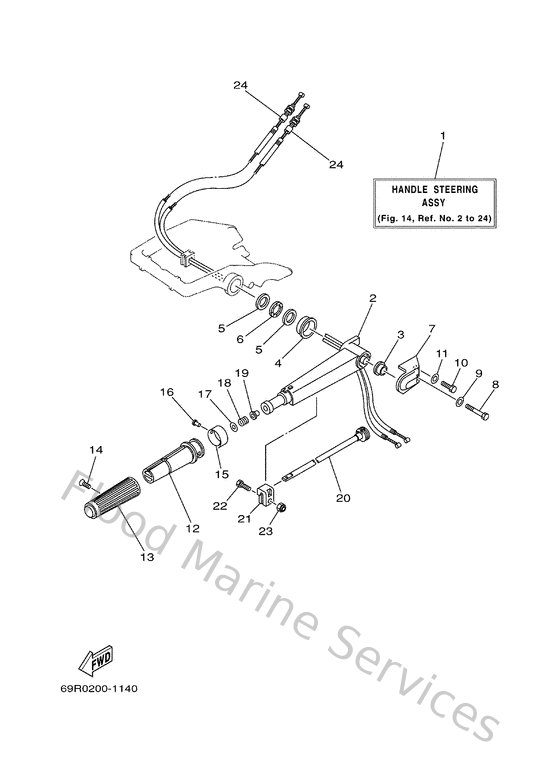

Diagram: Steering
Parts List
Reference
Description
Price
1
69PW0084004D
Handle steering assembly
Loading…
↗
2
68942111014D
Handle, steering
Loading…
↗
3
903871300300
Collar
Loading…
↗
4
903873300100
Collar
Loading…
↗
5
902012801300
Washer, plate
Loading…
↗
6
902062800100
Washer, wave
Loading…
↗
7
69P42112004D
Handle, steering
Loading…
↗
8
970800605000
Bolt(jf7)
Loading…
↗
9
929950660000
Washer, plain (646)
Loading…
↗
10
970950602000
Bolt(7u8)
Loading…
↗
12
664421190000
Grip, steering handle
Loading…
↗
13
6G1421770000
Rubber, handle
Loading…
↗
14
9014905M1300
Screw, countersunk
Loading…
↗
15
6G1421371000
Indicator, throttle
Loading…
↗
16
9026902M0900
Rivet(6l5)
Loading…
↗
17
929031060000
Washer, plate
Loading…
↗
18
905012321500
Spring (655)
Loading…
↗
19
903860803200
Bushing (650)
Loading…
↗
20
689421380000
Lever, throttle
Loading…
↗
21
656421260100
Piece, friction
Loading…
↗
23
901850606200
Nut selflocking (656)
Loading…
↗
24
61N263110000
Cable, throttle 1
Loading…
↗
