60FETO (1997)
Steering

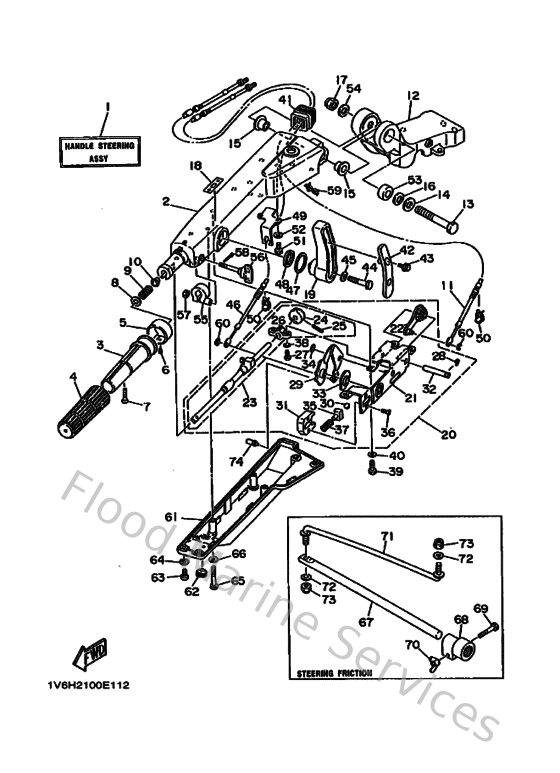

Diagram: Steering
Parts List
Reference
Description
Price
1
63DW0084114D
Handle Steering Assembly
Loading…
↗
2
63D42111014D
Handle, Steering
Loading…
↗
3
664421190000
Grip, steering handle
Loading…
↗
4
6G1421770000
Rubber, handle
Loading…
↗
5
6H2421370000
Indicator, throttle
Loading…
↗
6
9026902M0900
Rivet(6l5)
Loading…
↗
7
901520501100
Screw, countersunk
Loading…
↗
8
929901060000
Washer, plate
Loading…
↗
9
905012321500
Spring (655)
Loading…
↗
10
903860803200
Bushing (650)
Loading…
↗
11
6H3263010000
Throttle cable assembly
Loading…
↗
12
999990339200
Bracket
Loading…
↗
13
9010112M0900
Bolt
Loading…
↗
14
929901220000
Ybs66-12 washer,plain
Loading…
↗
15
9038612M9300
Bush(6b0)
Loading…
↗
16
9020612M2200
Washer, wave(6b0)
Loading…
↗
17
901851205800
Nut, nylon(663)
Loading…
↗
18
6G8441910000
Indicator, shift
Loading…
↗
19
63D441590100
Handle Gear Shift
Loading…
↗
20
63D441001100
Shift Link assembly
Loading…
↗
21
63D441040000
Plate Comp
Loading…
↗
22
63D482610000
Arm, Throttle
Loading…
↗
23
63D421150000
Shaft, Steering Handle
Loading…
↗
24
650421520094
Gear
Loading…
↗
25
916903002500
Pin, spring
Loading…
↗
26
63D421590000
Stay
Loading…
↗
27
985800601600
Screw pan head
Loading…
↗
28
990010860000
Circlip(2r6)
Loading…
↗
29
63D441130000
Cam Plate Handle
Loading…
↗
30
63D482360000
Roller, detent
Loading…
↗
31
63D481190000
Cover
Loading…
↗
33
63D441320000
Bushing
Loading…
↗
34
63D481180000
Clip, Shift Lever
Loading…
↗
35
63D482370000
Adaptor
Loading…
↗
36
987800501400
Screw 3
Loading…
↗
37
63D482380000
Spring, detent
Loading…
↗
38
63D421810000
Washer
Loading…
↗
39
970950601600
Bolt, hexagon deep recess
Loading…
↗
40
929900660000
Washer, plain (646)
Loading…
↗
41
63D427250000
Grommet
Loading…
↗
42
63D441730000
Lever, Shift Control
Loading…
↗
43
9015906M1800
Screw, with washer(6b0)
Loading…
↗
44
970950804000
Bolt, hexagon
Loading…
↗
45
929900860000
Washer, plain (663)
Loading…
↗
46
6H3483210000
Cable
Loading…
↗
47
9038629M9500
Bush(6B0)
Loading…
↗
48
9020224M5300
Washer Plate(6B0)
Loading…
↗
49
63D485310000
Bracket Remote Control 1
Loading…
↗
50
63D485380000
Clamp, cable 1
Loading…
↗
53
9038712M0200
Collar(6b0)
Loading…
↗
54
929901260000
Washer, plate(663)
Loading…
↗
55
63D421260000
Friction, steering handle grip
Loading…
↗
56
63D481540000
Knob, Throttle
Loading…
↗
57
953800660000
Nut(661)
Loading…
↗
58
914902001000
Pin, cotter
Loading…
↗
59
9046409M4200
Clamp(6b0)
Loading…
↗
60
990800460000
Circlip (eu0)
Loading…
↗
61
63D421310000
Cover, handle steering
Loading…
↗
62
9048014M1400
Grommet (6e0)
Loading…
↗
63
901570600900
Screw, pan head(6b0)
Loading…
↗
65
978850604000
Screw pan head
Loading…
↗
67
663425180000
Shaft, friction
Loading…
↗
68
663425280000
Piece, friction
Loading…
↗
69
970950603500
Bolt(j52)
Loading…
↗
70
901750600300
Nut, wing (f87)
Loading…
↗
71
692425150100
Rod, steering link
Loading…
↗
73
957800830000
Nut, nylon (6j8)
Loading…
↗
74
63D441140000
Plaquette
Loading…
↗
