6DMH (1998)
Steering

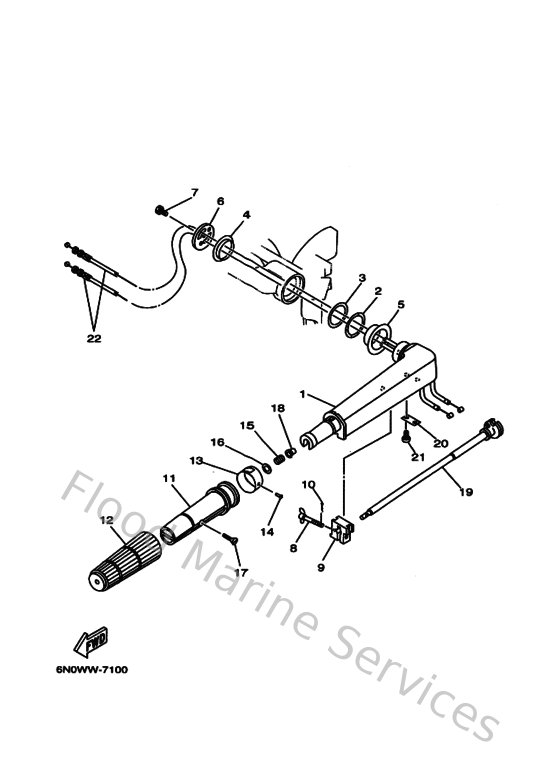

Diagram: Steering
Parts List
Reference
Description
Price
1
6M8G2111104D
Handle, steering
Loading…
↗
2
9020636M2100
Washer, wave(63v)
Loading…
↗
3
9020236M5500
Washer, plate(63v)
Loading…
↗
4
9038633M9600
Bush(63v)
Loading…
↗
5
9038634M9700
Bush(63v)
Loading…
↗
6
6G1421310100
Cover, handle steering
Loading…
↗
7
970800602000
Bolt(7u8)
Loading…
↗
8
6N0G21250000
Bolt, friction adjusting
Loading…
↗
9
6G1421260000
Piece, friction
Loading…
↗
10
914901601000
Pin, cotter
Loading…
↗
11
6M4G21190000
Grip, steering handle
Loading…
↗
12
6G1421770000
Rubber, handle
Loading…
↗
13
6G1421371000
Indicator, throttle
Loading…
↗
14
9026902M0900
Rivet(6l5)
Loading…
↗
15
905012321500
Spring (655)
Loading…
↗
16
929031060000
Washer, plate
Loading…
↗
17
9014905M1300
Screw, countersunk
Loading…
↗
18
903860803200
Bushing (650)
Loading…
↗
19
6G1421380100
Lever, throttle
Loading…
↗
20
6E0421590200
Stay
Loading…
↗
21
978850501200
Screw,pan head (646)
Loading…
↗
22
6N0F63010000
Throttle cable assembly
Loading…
↗
