F4AMH (2000)
Steering

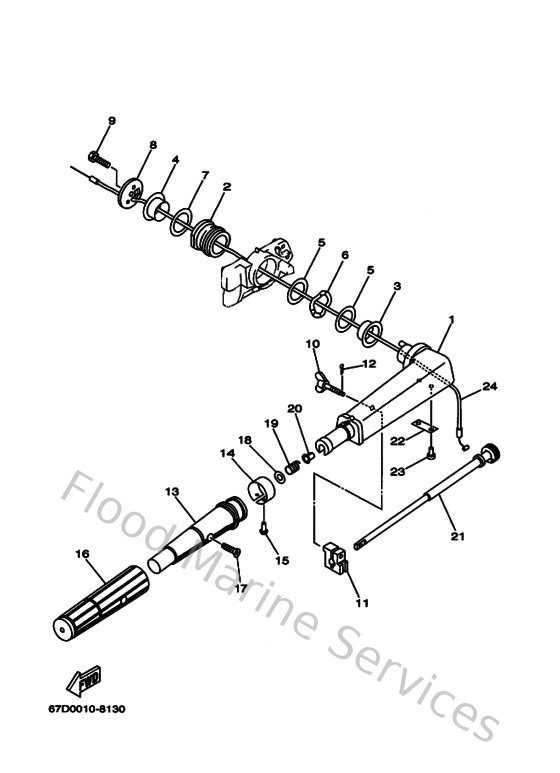

Diagram: Steering
Parts List
Reference
Description
Price
1
67D42111004D
Handle, Steering
Loading…
↗
2
67D421290000
Bushing, rubber
Loading…
↗
3
67D421710000
Bushing, 1
Loading…
↗
4
67D421720000
Bushing, 2
Loading…
↗
5
68DG21810000
Washer, 1
Loading…
↗
6
69MG21880000
Washer,wave
Loading…
↗
7
67D421820000
Washer, 2
Loading…
↗
8
68DG21310000
Cover, Handle Steering
Loading…
↗
9
970750802500
Bolt, hexagon deep recess
Loading…
↗
10
6G1421250100
Bolt, friction adjusting
Loading…
↗
11
6G1421260000
Piece, friction
Loading…
↗
12
914901601000
Pin, cotter
Loading…
↗
13
67D421190000
Grip, steering handle
Loading…
↗
15
9026902M0900
Rivet(6l5)
Loading…
↗
16
67D421770000
Rubber, handle
Loading…
↗
17
9014905M1300
Screw, countersunk
Loading…
↗
18
929031060000
Washer, plate
Loading…
↗
19
905012321500
Spring (655)
Loading…
↗
20
903860803200
Bushing (650)
Loading…
↗
21
6G1421380100
Lever, throttle
Loading…
↗
22
6E0421590200
Stay
Loading…
↗
23
978850501200
Screw,pan head (646)
Loading…
↗
24
67D263010000
Trottle cable
Loading…
↗
