F6BMH (2001)
Steering

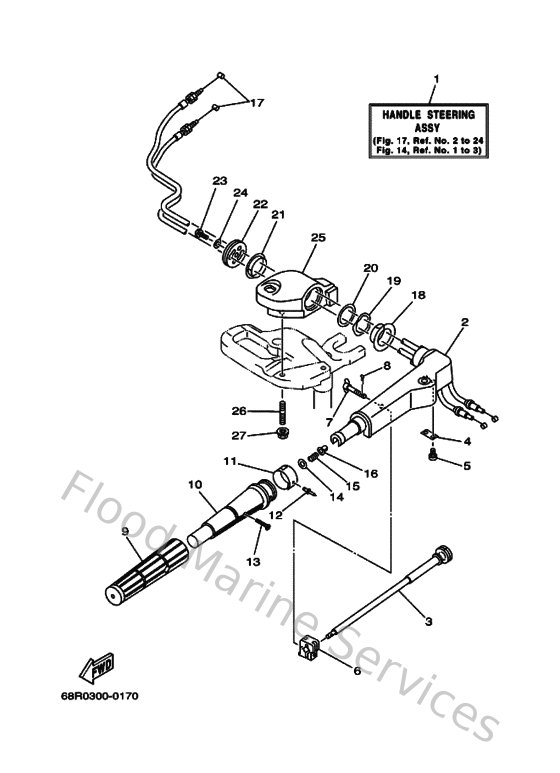

Diagram: Steering
Parts List
Reference
Description
Price
1
68TW0084004D
Handle steering assembly
Loading…
↗
2
63V42111004D
Handle, steering
Loading…
↗
3
6EGG21380000
Lever, throttle
Loading…
↗
4
6E0421590200
Stay
Loading…
↗
5
978850501200
Screw,pan head (646)
Loading…
↗
6
6EEG21260000
Friction, steering
Loading…
↗
7
6G1421250100
Bolt, friction adjusting
Loading…
↗
8
914901601000
Pin, cotter
Loading…
↗
9
67D421770000
Rubber, handle
Loading…
↗
10
67D421190100
Grip, steering handle
Loading…
↗
11
68R421370000
Indicator Throttle
Loading…
↗
12
9026902M0900
Rivet(6l5)
Loading…
↗
13
9014905M1300
Screw, countersunk
Loading…
↗
14
929031060000
Washer, plate
Loading…
↗
15
905012321500
Spring (655)
Loading…
↗
16
903860803200
Bushing (650)
Loading…
↗
17
68T263010100
Throttle cable assembly
Loading…
↗
18
9038634M9700
Bush(63v)
Loading…
↗
19
9020636M2100
Washer, wave(63v)
Loading…
↗
20
9020236M5500
Washer, plate(63v)
Loading…
↗
21
9038633M9600
Bush(63v)
Loading…
↗
23
970750602500
Bolt
Loading…
↗
24
929950660000
Washer, plain (646)
Loading…
↗
25
68T42121004D
Bracket & washer set
Loading…
↗
26
9011610M2800
Bolt, stud
Loading…
↗
