F8BMH (1993)
Steering

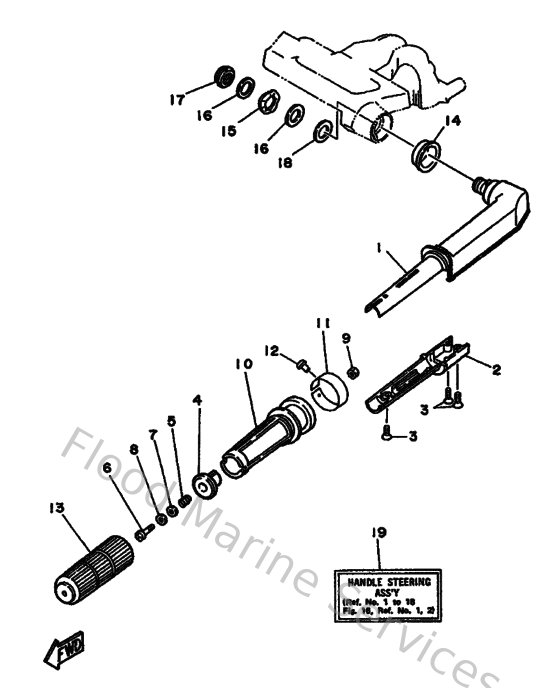

Diagram: Steering
Parts List
Reference
Description
Price
3
987800501600
Ybs53-516 screw,flat head
Loading…
↗
4
6G8421260194
Friction, steering handle grip
Loading…
↗
5
9050123M4200
Spring, compression (6g8)
Loading…
↗
6
978900603000
Screw, pan head(6e0)
Loading…
↗
7
902010604900
Washer, plate(j41)
Loading…
↗
8
902020600700
Washer plate 626441880000
Loading…
↗
9
9538R0670000
Nut
Loading…
↗
10
6G8421190000
Grip, steering handle
Loading…
↗
11
6G8421370100
Indicator, throttle
Loading…
↗
12
9026902M0900
Rivet(6l5)
Loading…
↗
13
6G8421770000
Rubber, handle
Loading…
↗
14
9038633M5600
Bushing (6g8)
Loading…
↗
15
9020620M1400
Washer, wave (6g8)
Loading…
↗
16
9020120M0000
Washer, plate(6g8)
Loading…
↗
17
9018520M0300
Nut, self-locking(6g8)
Loading…
↗
18
9020220M3300
Washer (6g8)
Loading…
↗
