Yamaha Outboard Parts - Steering - F9.9CMH (2001) | Flood Marine

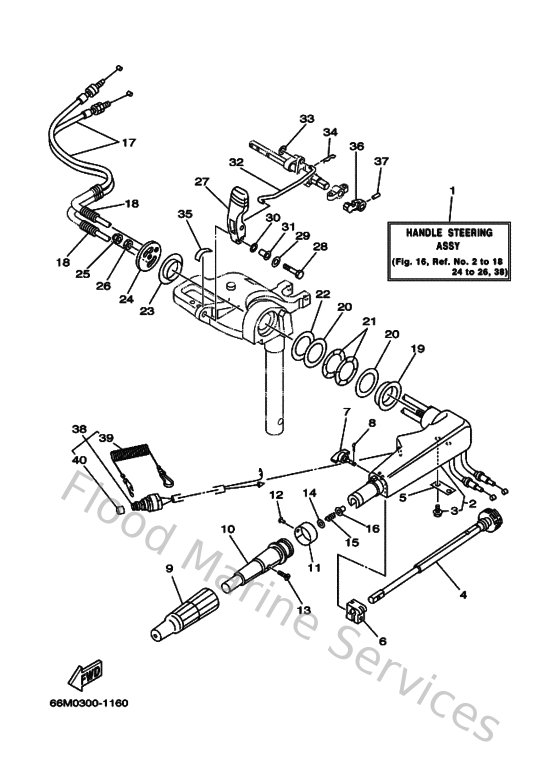

Diagram: Steering

Diagram

Parts List

Reference
Description
Price


1
66MW0084004D
Handle steering assembly
Loading…

↗
2
65W42101014D
Handle, steering
Loading…

↗
3
9010906M8600
Bolt
Loading…

↗
4
65W421380000
Lever, throttle
Loading…

↗
5
65W421590000
Stay
Loading…

↗
6
6EEG21260000
Friction, steering
Loading…

↗
7
65W421250000
Bolt, friction adjusting
Loading…

↗
8
914901601000
Pin, cotter
Loading…

↗
9
66M421770000
Rubber, handle
Loading…

↗
10
66M421190000
Grip, steering handle
Loading…

↗
11
689421373000
Indicator, Throttle
Loading…

↗
12
9026902M0900
Rivet(6l5)
Loading…

↗
13
9014905M1300
Screw, countersunk
Loading…

↗
14
929031060000
Washer, plate
Loading…

↗
15
905012321500
Spring (655)
Loading…

↗
16
903860803200
Bushing (650)
Loading…

↗
17
66M263110000
Cable, throttle 1
Loading…

↗
18
9044610M8700
Hose
Loading…

↗
19
66R421710000
Bushing
Loading…

↗
20
9020143M0000
Washer, plate
Loading…

↗
21
9020643M2200
Washer, wave
Loading…

↗
22
9020243M5700
Washer, plate
Loading…

↗
23
9038640M9900
Bush
Loading…

↗
24
65W421310100
Cover, handle steering
Loading…

↗
25
957801030000
Nut, nylon (6e5)
Loading…

↗
26
953801070000
Nut (682)
Loading…

↗
27
66M441110100
Handle, gear shift
Loading…

↗
28
970950603000
Bolt(jf7)
Loading…

↗
29
929900660000
Washer, plain (646)
Loading…

↗
30
9020610M0400
Washer, wave (676)
Loading…

↗
31
9038706M7800
Collar
Loading…

↗
32
66M441240000
Link, shift rod
Loading…

↗
33
929900620000
Ybs66-6 washer, plain
Loading…

↗
34
904681800800
Clip 620436610000
Loading…

↗
35
6X3441910000
Indicator, shift
Loading…

↗
38
65W825750000
Engine stop switch assembly
Loading…

↗
39
682825560000
Lanyard, stop switch
Loading…

↗
40
6898257Y0000
Cap
Loading…

↗
