Yamaha Outboard Parts - Steering - FT9.9AMH (1986) | Flood Marine

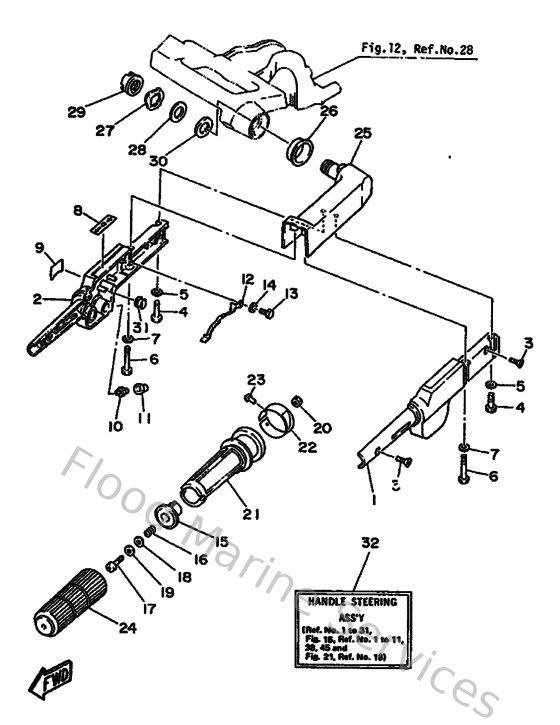

Diagram: Steering

Diagram

Parts List

Reference
Description
Price


1
6G84211100EL
Handle, Steering
Loading…

↗
2
6G84211200EL
Handle, Steering
Loading…

↗
3
987800501600
Ybs53-516 screw,flat head
Loading…

↗
4
9010106M2700
Bolt
Loading…

↗
5
929900660000
Washer, plain (646)
Loading…

↗
6
973950604000
Bolt (682)
Loading…

↗
8
6G8441910000
Indicator, shift
Loading…

↗
10
937000600400
Nipple, grease(6a1)
Loading…

↗
11
663451190000
Cap, grease nipple
Loading…

↗
12
6G8421470100
Spring
Loading…

↗
13
973950501200
Bolt, hexagon
Loading…

↗
14
929900560000
Washer, plain (646)
Loading…

↗
15
6G8421260094
Friction, steering handle grip
Loading…

↗
16
9050123M4200
Spring, compression (6g8)
Loading…

↗
17
978900603000
Screw, pan head(6e0)
Loading…

↗
18
902010604900
Washer, plate(j41)
Loading…

↗
19
902020600700
Washer plate 626441880000
Loading…

↗
20
9538R0670000
Nut
Loading…

↗
21
6G8421190000
Grip, steering handle
Loading…

↗
22
6G8421370100
Indicator, throttle
Loading…

↗
23
902690200100
Rivet(6l5)
Loading…

↗
24
6G8421770000
Rubber, handle
Loading…

↗
25
6G84211300EL
Handle, steering 3
Loading…

↗
26
9038633M5600
Bushing (6g8)
Loading…

↗
27
9020620M1400
Washer, wave (6g8)
Loading…

↗
28
9020120M9500
Washer, plate(j45)
Loading…

↗
29
9017920M0900
Nut, Spec'l Shape
Loading…

↗
30
9020220M3300
Washer (6g8)
Loading…

↗
31
6H4427250000
Grommet 2
Loading…

↗
