F20AM (1999)
Steering 1

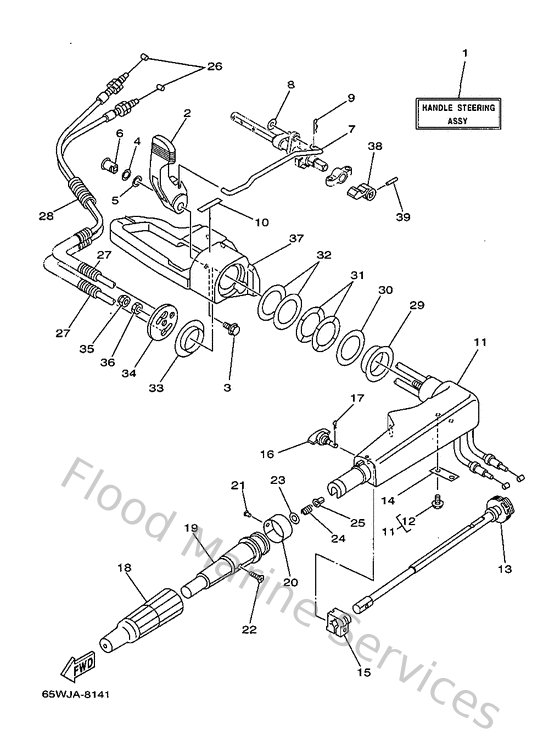

Diagram: Steering 1
Parts List
Reference
Description
Price
1
65WW0084014D
Handle steering assembly
Loading…
↗
2
65W441110000
Handle, gear shift
Loading…
↗
3
958950601600
Bolt, flange deep recess
Loading…
↗
4
9020612M0000
Washer, wave (676)
Loading…
↗
5
9020112M0700
Washer, plate
Loading…
↗
6
65W421230000
Bolt, handle joint
Loading…
↗
7
65W441240000
Link, shift rod
Loading…
↗
8
929900620000
Ybs66-6 washer, plain
Loading…
↗
9
904681800800
Clip 620436610000
Loading…
↗
10
6X3441910000
Indicator, shift
Loading…
↗
11
65W42101014D
Handle, steering
Loading…
↗
12
9010906M8600
Bolt
Loading…
↗
13
65W421380000
Lever, throttle
Loading…
↗
14
65W421590000
Stay
Loading…
↗
15
6EEG21260000
Friction, steering
Loading…
↗
16
65W421250000
Bolt, friction adjusting
Loading…
↗
17
914901601000
Pin, cotter
Loading…
↗
18
66M421770000
Rubber, handle
Loading…
↗
19
66M421190000
Grip, steering handle
Loading…
↗
20
6J0421371000
Indicator, throttle
Loading…
↗
21
9026902M0900
Rivet(6l5)
Loading…
↗
22
9014905M1300
Screw, countersunk
Loading…
↗
23
929031060000
Washer, plate
Loading…
↗
24
905012321500
Spring (655)
Loading…
↗
25
903860803200
Bushing (650)
Loading…
↗
26
65W263110000
Cable, throttle 1
Loading…
↗
27
9044610M8600
Hose
Loading…
↗
28
9044614M8800
Hose
Loading…
↗
29
9038640MA000
Bushing
Loading…
↗
30
9020143M0000
Washer, plate
Loading…
↗
31
9020643M2200
Washer, wave
Loading…
↗
32
9020243M5700
Washer, plate
Loading…
↗
33
9038640M9900
Bush
Loading…
↗
34
65W421310100
Cover, handle steering
Loading…
↗
35
957801030000
Nut, nylon (6e5)
Loading…
↗
36
953801070000
Nut (682)
Loading…
↗
37
65W42121018D
Bracket
Loading…
↗
38
65W441730000
Lever, shift control
Loading…
↗
39
916903032000
Pin, spring
Loading…
↗
