F80AET (1999)
Steering 2

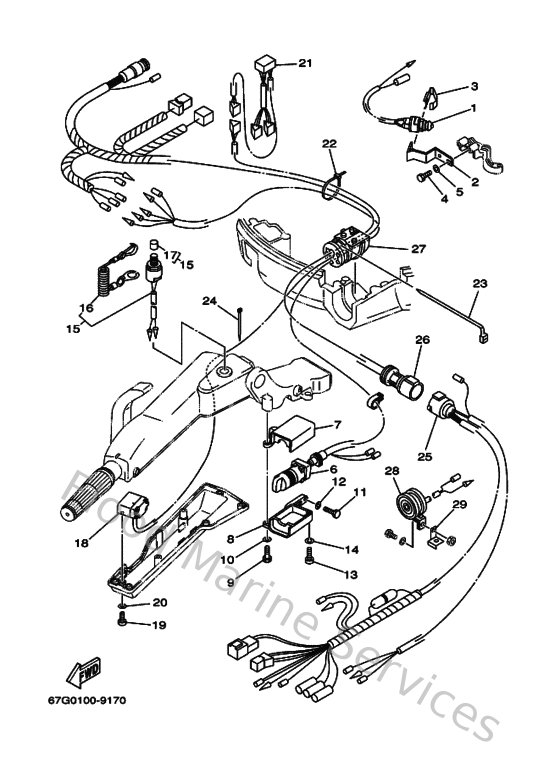

Diagram: Steering 2
Parts List
Reference
Description
Price
1
688825401100
Neutral switch assembly
Loading…
↗
2
67G825540000
Stay Neutral Switch
Loading…
↗
3
62Y825550000
Damper Main Switch 1
Loading…
↗
4
970800601400
Bolt(gj3)
Loading…
↗
5
929950660000
Washer, plain (646)
Loading…
↗
6
67G825101000
Main Switch assembly
Loading…
↗
7
63D8252E014D
Cover, main switch 1
Loading…
↗
8
63D8252F014D
Cover, main switch 2
Loading…
↗
9
970950602500
Bolt
Loading…
↗
11
970800602000
Bolt(7u8)
Loading…
↗
13
978850602500
Screw, pan head(6b0)
Loading…
↗
14
929950610000
Washer(6a1)
Loading…
↗
15
699825750900
Engine stop switch assembly
Loading…
↗
16
682825560000
Lanyard, stop switch
Loading…
↗
17
6898257Y0000
Cap
Loading…
↗
18
67G825630000
Trim & tilt switch assembly
Loading…
↗
19
901570600900
Screw, pan head(6b0)
Loading…
↗
21
63D837280000
Connector assembly
Loading…
↗
22
437839361100
Band, switch cord
Loading…
↗
23
9046513M3000
Clamp
Loading…
↗
24
9046511M1000
Clamp
Loading…
↗
26
63D825860000
Extension, Wire Harness
Loading…
↗
27
67G427250000
Grommet
Loading…
↗
28
688833831100
Buzzer
Loading…
↗
29
6H5833860000
Buzzer Stay
Loading…
↗
