FT8DMHSL (2001)
Steering Friction

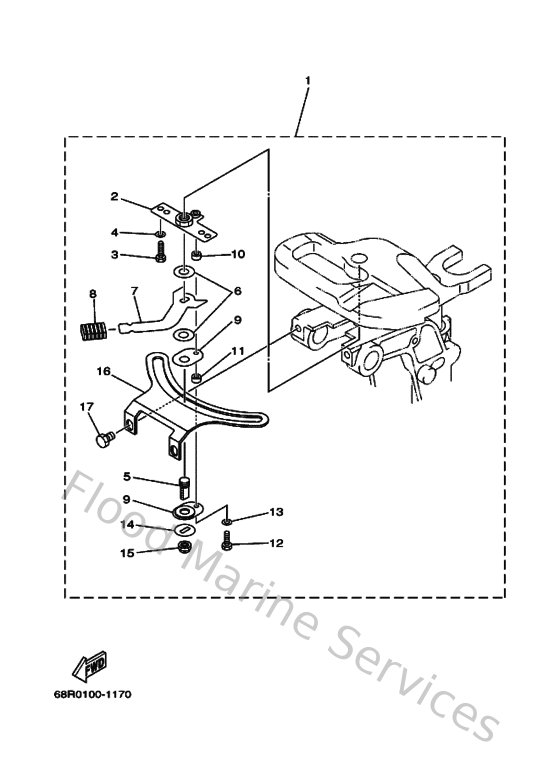

Diagram: Steering Friction
Parts List
Reference
Description
Price
1
68T425080000
Steering friction assembly
Loading…
↗
2
68T425250100
Plate, friction
Loading…
↗
3
970950502000
Bolt, hexagon
Loading…
↗
4
929950560000
Washer, plain (646)
Loading…
↗
5
67C425620000
Shaft, steering lock
Loading…
↗
6
9020210M5600
Washer, plate
Loading…
↗
7
68T425610000
Knob, steering lock
Loading…
↗
8
689436330000
Cover, tilt lever
Loading…
↗
9
65W425280000
Plate, friction
Loading…
↗
10
903870505300
Collar
Loading…
↗
11
9038705M1100
Collar
Loading…
↗
14
9020910M2600
Washer
Loading…
↗
15
9018510M1400
Nut, self-locking
Loading…
↗
16
68T425270000
Plate, friction
Loading…
↗
17
9010908M9100
Bolt, hexagon deep recess
