150AETOL (1987)
Steering Guide

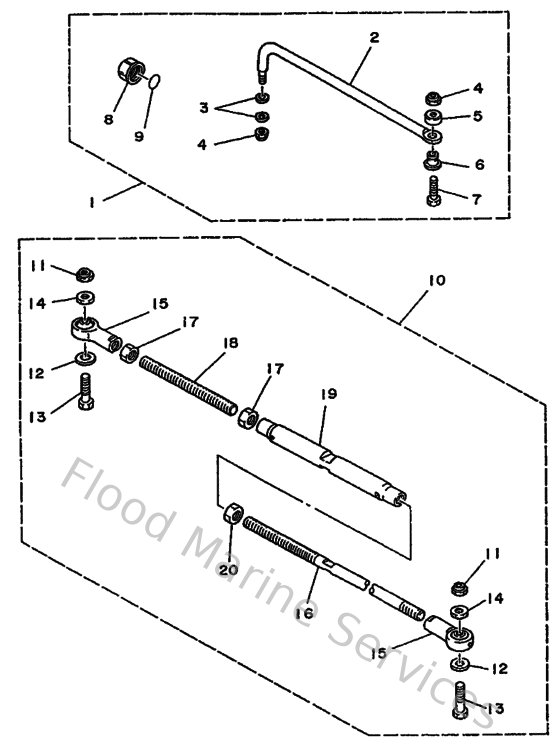

Diagram: Steering Guide
Parts List
Reference
Description
Price
1
6E5613500100
Steering guide attachment kit
Loading…
↗
2
6E5613510000
Rod, steering link
Loading…
↗
3
9020110M2000
Washer, plate (663)
Loading…
↗
4
9018509M0100
Nut, nylon (663)
Loading…
↗
5
9056012M0100
Spacer (6e5)
Loading…
↗
6
9038710M6100
Collar (6e5)
Loading…
↗
7
9010109M6600
Bolt
Loading…
↗
8
6E5431450000
Cap, clamp bracket
Loading…
↗
9
932101627500
O-ring
Loading…
↗
10
ABADUALTIEBR
Twin Kit (L:600-800M)
Loading…
↗
12
9020110M7600
Washer, plate (6e5)
Loading…
↗
13
9010109M7000
Bolt (6e5)
Loading…
↗
14
9017009M0500
Nut, hexagon (6e5)
Loading…
↗
15
6E5613030000
Steering axle comp.
Loading…
↗
16
6E5613111100
Tie bar
Loading…
↗
17
953801470000
Nut (6e5)
Loading…
↗
18
6E5613150000
Tie bar, 2
Loading…
↗
19
6E5613130000
Adjuster
Loading…
↗
20
9017014M0600
Nut (6e5)
Loading…
↗
