Yamaha Outboard Parts - Steering Guide Attachment 2 - LZ150PETO (2000) | Flood Marine

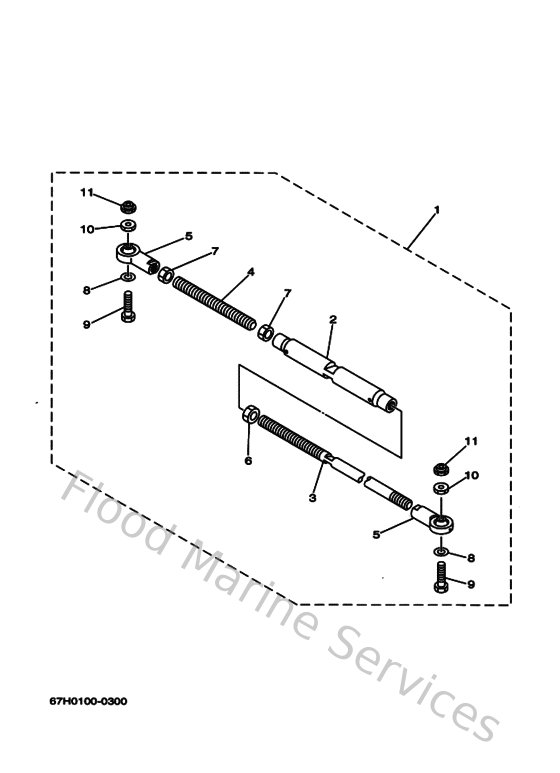

Diagram: Steering Guide Attachment 2

Diagram

Parts List

Reference
Description
Price


1
6E5613010100
Tie bar assembly (l:600-800mm)
Loading…

↗
2
6E5613130000
Adjuster
Loading…

↗
3
6E5613111100
Tie bar
Loading…

↗
4
6E5613150000
Tie bar, 2
Loading…

↗
5
6E5613030000
Steering axle comp.
Loading…

↗
6
9017014M0600
Nut (6e5)
Loading…

↗
7
953801470000
Nut (6e5)
Loading…

↗
8
9020110M7600
Washer, plate (6e5)
Loading…

↗
9
9010109M7000
Bolt (6e5)
Loading…

↗
10
9017009M0500
Nut, hexagon (6e5)
Loading…

↗
11
9018509M0100
Nut, nylon (663)
Loading…

↗
