L130BETOL (2001)
Switch & Panel

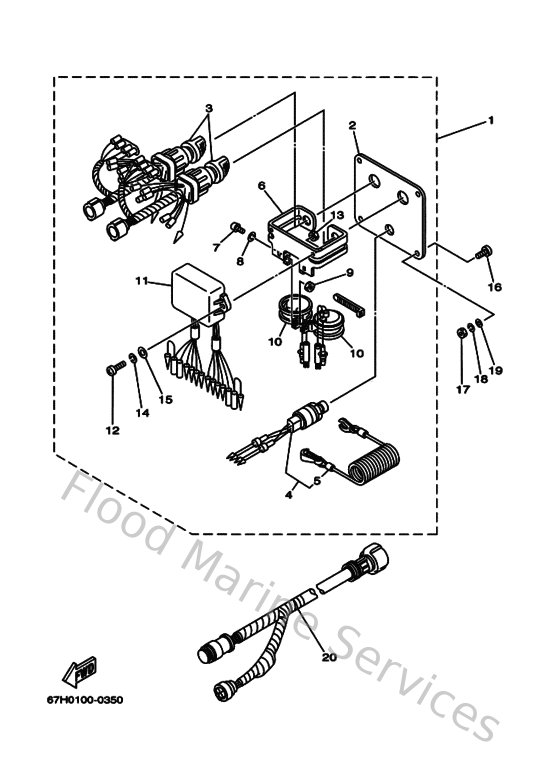

Diagram: Switch & Panel
Parts List
Reference
Description
Price
1
6K1825700500
Panel switch assembly
Loading…
↗
2
6K1825710100
Plate, panel switch
Loading…
↗
3
6K1825100500
Main switch assembly
Loading…
↗
4
6K1825750100
Engine stop switch assembly
Loading…
↗
5
682825560000
Lanyard, stop switch
Loading…
↗
6
6K1836140100
Bracket
Loading…
↗
7
989800501000
Screw, bind(6k1)
Loading…
↗
8
929900510000
Ybs67-5 washer, spring
Loading…
↗
9
953800560000
Nut, hexagon (663)
Loading…
↗
10
688833831200
Buzzer
Loading…
↗
11
6K1858300100
Control unit assembly
Loading…
↗
12
989800602000
Screw, bind (j17)
Loading…
↗
13
953800660000
Nut(661)
Loading…
↗
14
929900610000
Washer(6a1)
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
9014905M0500
Screw(6k0)
Loading…
↗
19
929900560000
Washer, plain (646)
Loading…
↗
20
6K18258A4000
Extension, wire harness
Loading…
↗
