L250BETO (2001)
Switch & Panel

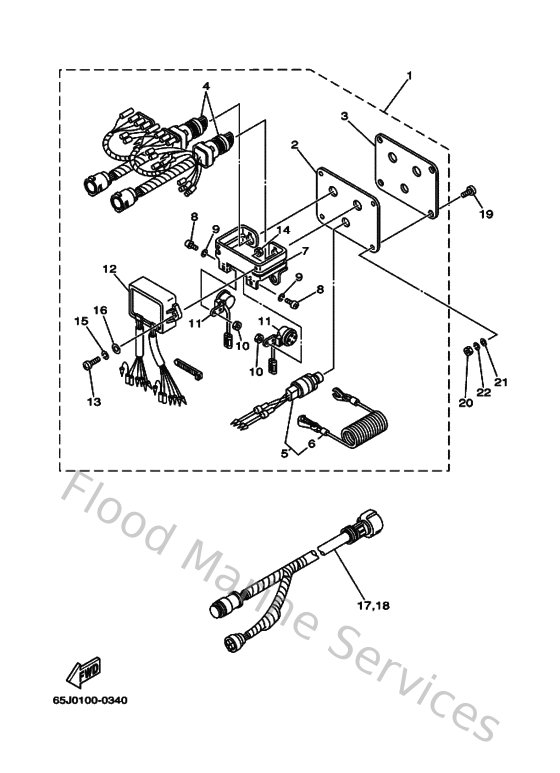

Diagram: Switch & Panel
Parts List
Reference
Description
Price
1
61B825700100
Panel switch assembly
Loading…
↗
2
61B825880100
Plate
Loading…
↗
3
61B825510100
Stop Switch assembly
Loading…
↗
4
61B825100000
Main switch assembly
Loading…
↗
5
6K1825750100
Engine stop switch assembly
Loading…
↗
6
682825560000
Lanyard, stop switch
Loading…
↗
7
6K1836140100
Bracket
Loading…
↗
8
989800501000
Screw, bind(6k1)
Loading…
↗
9
929900510000
Ybs67-5 washer, spring
Loading…
↗
10
953800560000
Nut, hexagon (663)
Loading…
↗
11
6R5833830000
Buzzer
Loading…
↗
12
61B858300000
Control Unit assembly
Loading…
↗
13
989800602000
Screw, bind (j17)
Loading…
↗
14
953800660000
Nut(661)
Loading…
↗
15
929900610000
Washer(6a1)
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
17
6K18258A4000
Extension, wire harness
Loading…
↗
18
61B8258A0100
Extension, wire harness
Loading…
↗
19
9014905M0500
Screw(6k0)
Loading…
↗
21
929900560000
Washer, plain (646)
Loading…
↗
