Yamaha Outboard Parts - THROTTLE BODY ASSY - XF400NSA (2025) | Flood Marine

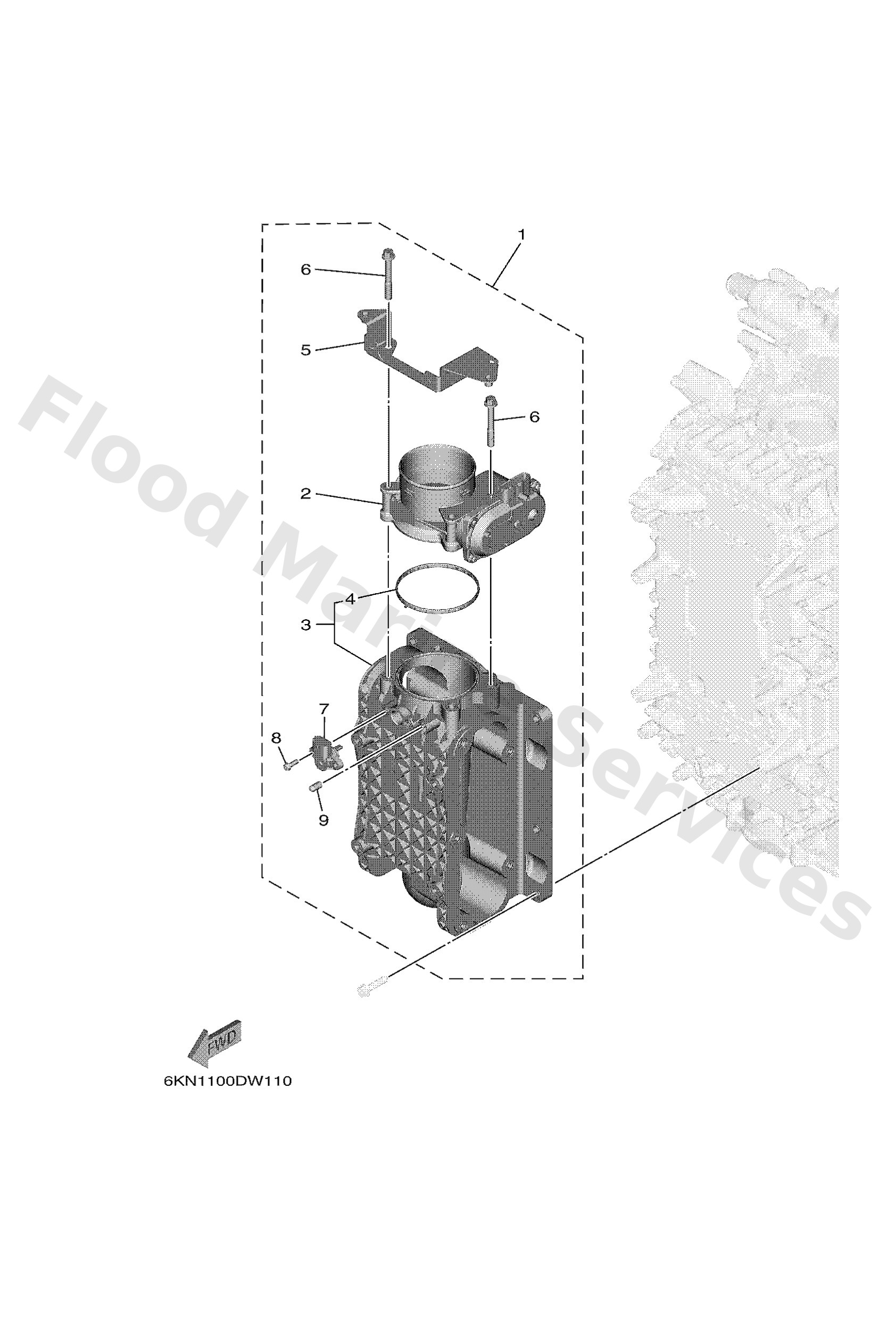

Diagram: THROTTLE BODY ASSY

Diagram

Parts List

Reference
Description
Price


1
6KN1375001
Throttle body assembly
Loading…

↗
2
6GR1375101
Body, throttle 1
Loading…

↗
3
6GR1371100
Mixing body
Loading…

↗
4
6GR1355600
Gasket, manifold
Loading…

↗
5
6KN1389800
Holder
Loading…

↗
6
9010508M36
Bolt (6g8)
Loading…

↗
7
68F8368810
Sensor assembly
Loading…

↗
8
68V8114700
Screw 3
Loading…

↗
9
63P1364300
Cap
Loading…

↗
