F225BET (2024)
THROTTLE BODY ASSY 1

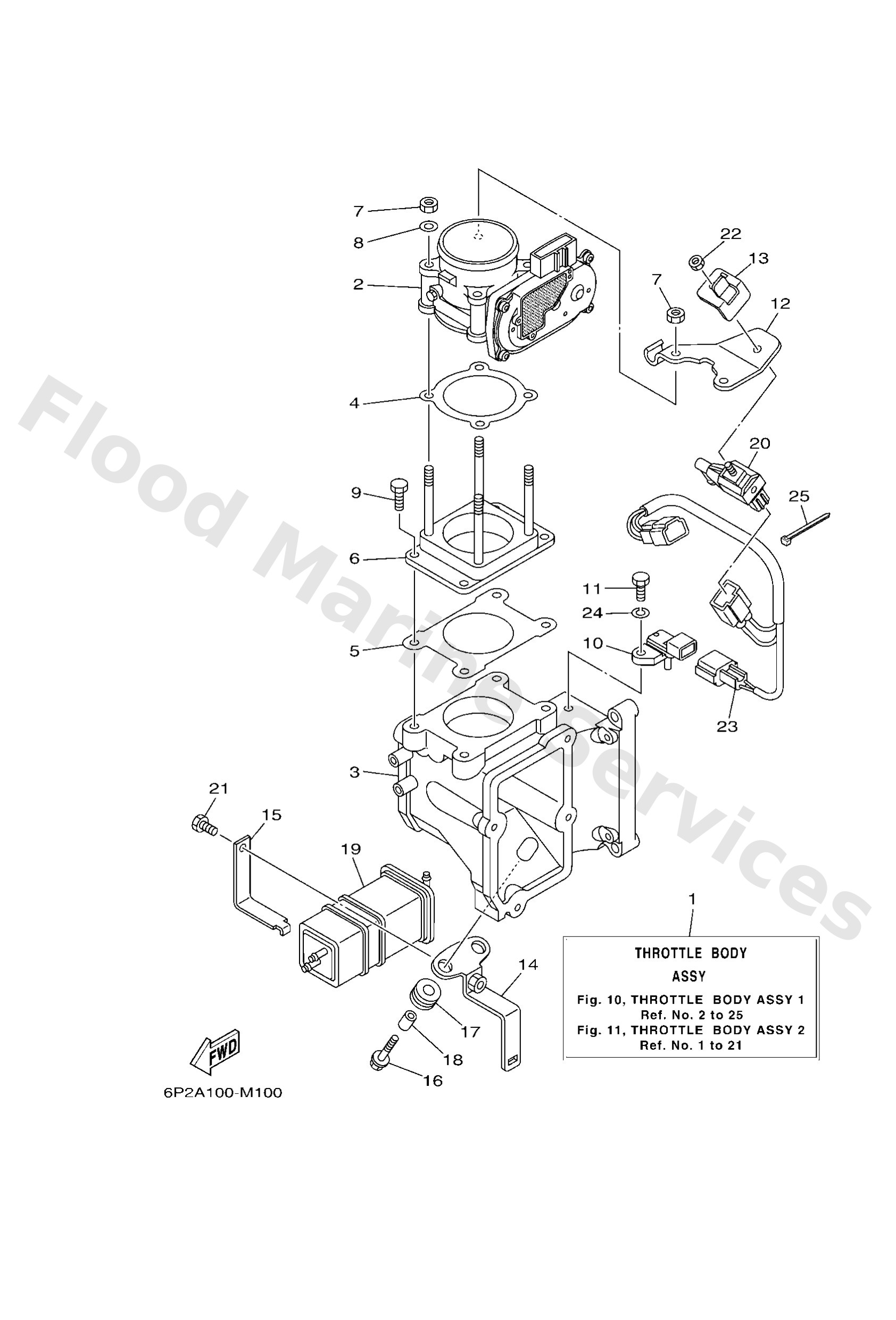

Diagram: THROTTLE BODY ASSY 1
Parts List
Reference
Description
Price
1
6P21375014
Throttle body assembly
Loading…
↗
2
6P21375104
Body, throttle 1
Loading…
↗
3
6P21371100
Mixing body
Loading…
↗
4
6P21355600
Gasket, manifold
Loading…
↗
5
6P21355700
Gasket
Loading…
↗
6
6P21436000
Throttle damper assembly
Loading…
↗
7
6P21358801
Nut
Loading…
↗
8
6P21357800
Washer
Loading…
↗
9
6P21449600
Bolt
Loading…
↗
10
6P28238000
Sensor, pressure
Loading…
↗
11
6P21357300
Bolt 1
Loading…
↗
12
6P21425500
Plate
Loading…
↗
13
6P21415900
Clip
Loading…
↗
14
6P22134X00
Bracket, canister
Loading…
↗
15
6P22419A00
Holder
Loading…
↗
16
9011906289
Bolt, with washer
Loading…
↗
17
9048010M23
Grommet(6k7)
Loading…
↗
18
9038706289
Collar
Loading…
↗
19
6P22417000
Canister assembly
Loading…
↗
20
6C58612000
Solenoid valve assembly
Loading…
↗
21
6P21357400
Bolt 2
Loading…
↗
22
69J1416400
Nut, holding
Loading…
↗
23
6P28258A00
Extension, wire harness
Loading…
↗
24
68V1435600
Washer, spring
Loading…
↗
25
68V2481H00
Clamp
Loading…
↗
