Yamaha Outboard Parts - THROTTLE BODY ASSY 1 - F250AET (2010) | Flood Marine

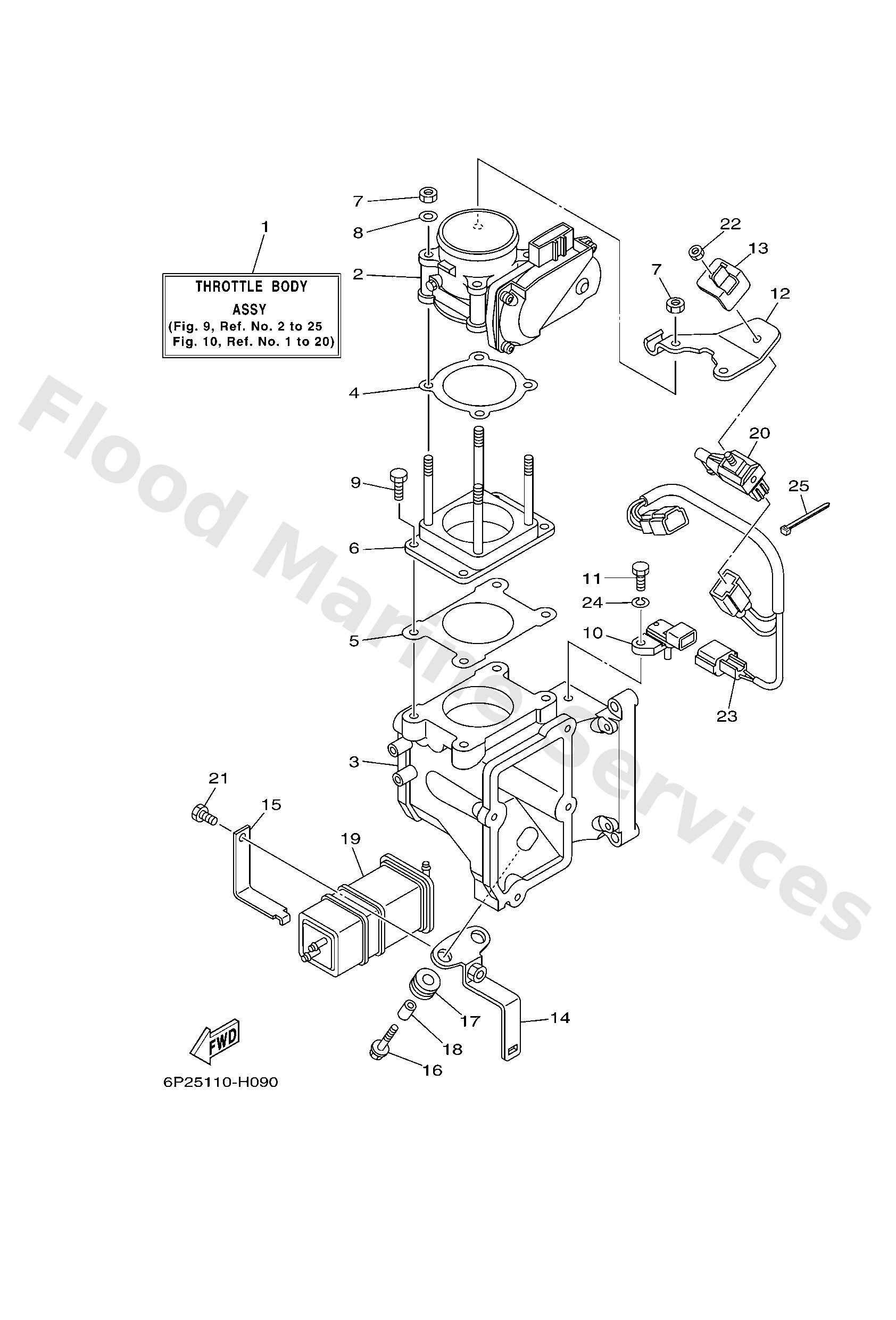

Diagram: THROTTLE BODY ASSY 1

Diagram

Parts List

Reference
Description
Price


1
6P21375000
Throttle body assembly
Loading…

↗
2
6P21375100
Body, throttle 1
Loading…

↗
3
6P21371100
Mixing body
Loading…

↗
4
6P21355600
Gasket, manifold
Loading…

↗
5
6P21355700
Gasket
Loading…

↗
6
6P21436000
Throttle damper assembly
Loading…

↗
7
6P21358800
Nut
Loading…

↗
8
6P21357800
Washer
Loading…

↗
9
6P21449600
Bolt
Loading…

↗
10
6P28238000
Sensor, pressure
Loading…

↗
11
6P21357300
Bolt 1
Loading…

↗
12
6P21425500
Plate
Loading…

↗
13
6P21415900
Clip
Loading…

↗
14
6P22134X00
Bracket, canister
Loading…

↗
15
6P22419A00
Holder
Loading…

↗
16
9011906M59
Bolt, with washer
Loading…

↗
17
9048010M23
Grommet(6k7)
Loading…

↗
18
9038706M60
Collar (6h3)
Loading…

↗
19
6P22417000
Canister assembly
Loading…

↗
20
6C58612000
Solenoid valve assembly
Loading…

↗
21
6P21357400
Bolt 2
Loading…

↗
22
69J1416400
Nut, holding
Loading…

↗
23
6P28258A00
Extension, wire harness
Loading…

↗
24
68V1435600
Washer, spring
Loading…

↗
25
68V2481H00
Clamp
Loading…

↗
