FL225AET (2002)
THROTTLE BODY ASSY 1

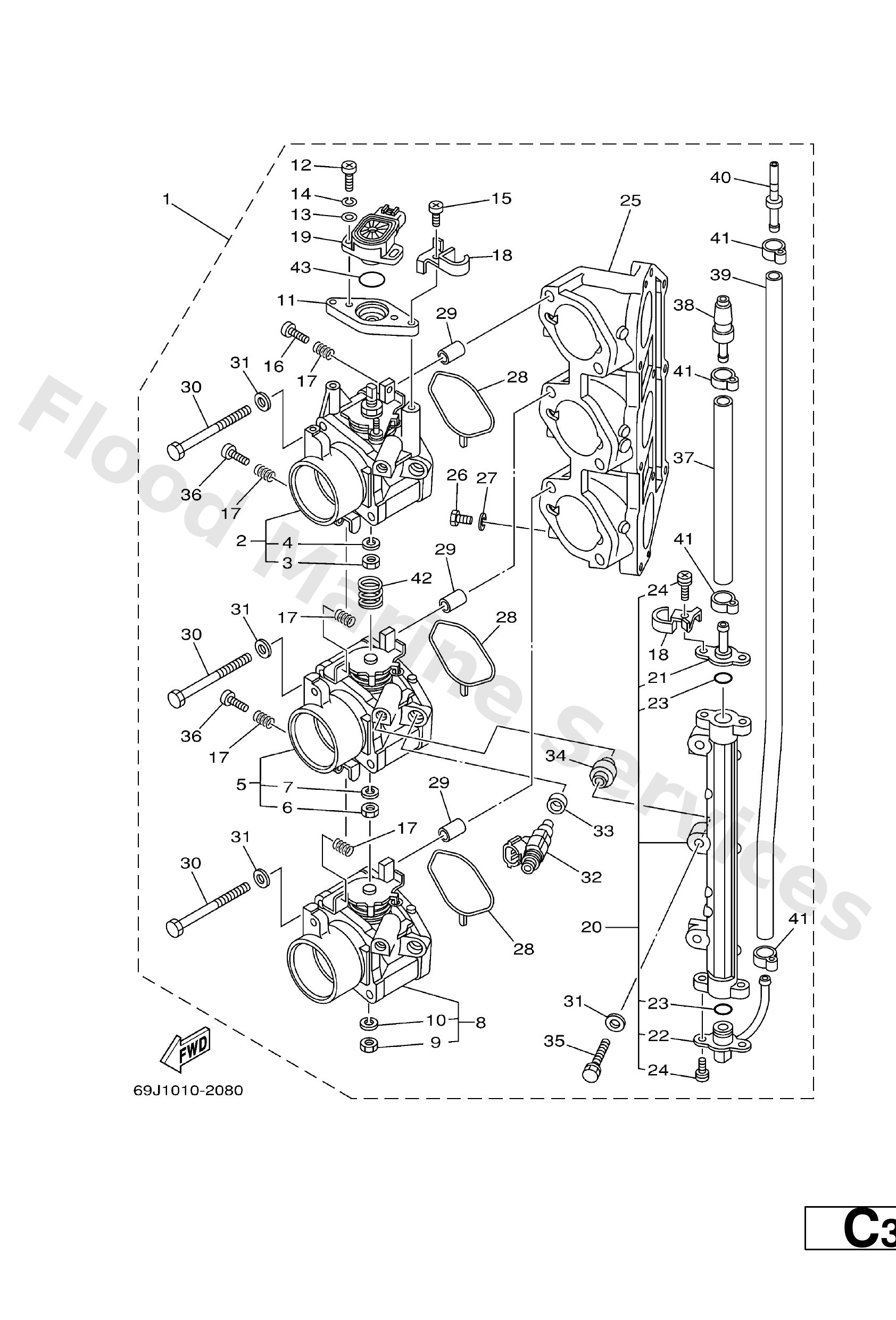

Diagram: THROTTLE BODY ASSY 1
Parts List
Reference
Description
Price
1
69J1375000
Throttle body assembly
Loading…
↗
2
69J1375100
Body, Throttle 1
Loading…
↗
3
3CF1459400
Nut
Loading…
↗
4
9299008100
Ybs67-8 washer, spring
Loading…
↗
5
69J1375300
Body, Throttle 3
Loading…
↗
8
69J1375500
Body, Throttle 5
Loading…
↗
11
69J1357600
Spacer
Loading…
↗
12
68V8114500
Screw 1
Loading…
↗
13
68V8116200
Washer, Plain
Loading…
↗
14
9299004100
Ybs67-4 washer, spring
Loading…
↗
15
68V1456500
Screw
Loading…
↗
16
68V1432300
Screw, air adjusting
Loading…
↗
17
68V1433100
Spring, throttle valve
Loading…
↗
18
69J1426100
Holder
Loading…
↗
19
69J8588500
Throttle sensor assembly
Loading…
↗
20
69J1316000
Delivery pipe assembly 1
Loading…
↗
21
69J1429500
Pipe, fuel
Loading…
↗
22
69J1425100
Nipple
Loading…
↗
23
68V1439700
O-ring
Loading…
↗
24
68V8114700
Screw 3
Loading…
↗
25
69J1364100
Manifold 1
Loading…
↗
26
9709506010
Bolt
Loading…
↗
27
9043006014
Gasket 256113960000
Loading…
↗
28
69J1355700
Gasket
Loading…
↗
29
9953010114
Pin, dowel(3vd)
Loading…
↗
30
69J1449600
Bolt
Loading…
↗
31
68V1447500
Washer
Loading…
↗
32
69J1376100
Injector assembly
Loading…
↗
33
68V1376600
Rubber, injector
Loading…
↗
34
68V1426400
Collar
Loading…
↗
35
68V1442800
Bolt
Loading…
↗
36
69J1432100
Screw, throttle
Loading…
↗
37
69J1397300
Pipe, Fuel 3
Loading…
↗
38
68F2430000
Fuel pipe joint
Loading…
↗
39
69J1397200
Pipe, fuel 2
Loading…
↗
40
69J2438100
Set bar, fuel joint
Loading…
↗
41
68V2438700
Clip
Loading…
↗
42
69J1428600
Spring
Loading…
↗
43
68V8182L00
O-ring 1
Loading…
↗
