Yamaha Outboard Parts - THROTTLE BODY ASSY 1 - FL250DET (2014) | Flood Marine

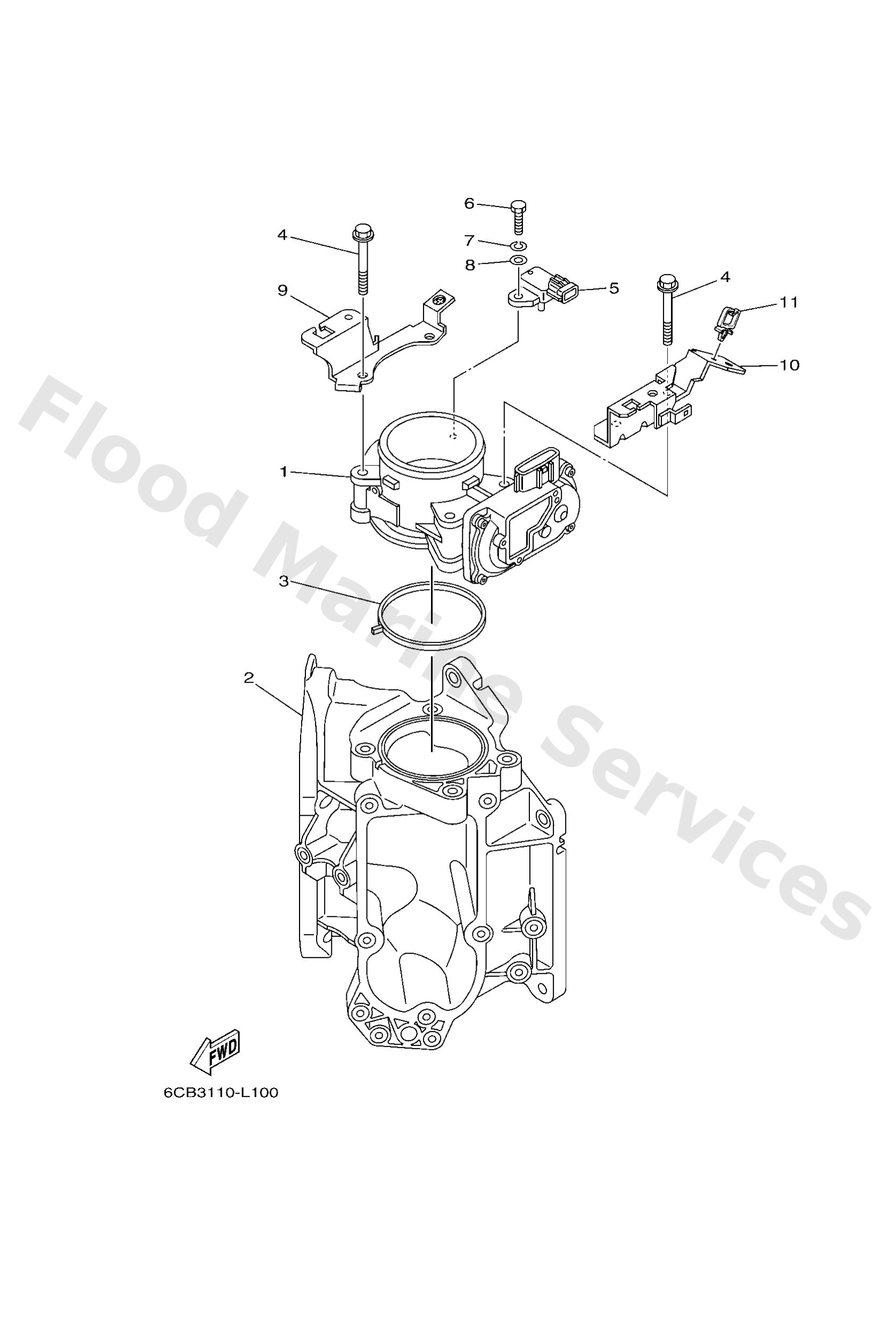

Diagram: THROTTLE BODY ASSY 1

Diagram

Parts List

Reference
Description
Price


1
6CB1375100
Body, throttle 1
Loading…

↗
2
6CB1371100
Mixing body
Loading…

↗
3
6CB1355600
Gasket, manifold
Loading…

↗
4
9587508060
Bolt, flange
Loading…

↗
5
6P28238000
Sensor, pressure
Loading…

↗
6
9707506020
Bolt(7u8)
Loading…

↗
7
9299506100
Washer(6a1)
Loading…

↗
8
9299506600
Washer, plain (646)
Loading…

↗
9
6CB1389800
Holder
Loading…

↗
10
6CB1389810
Holder
Loading…

↗
11
9046408004
Clamp
Loading…

↗
